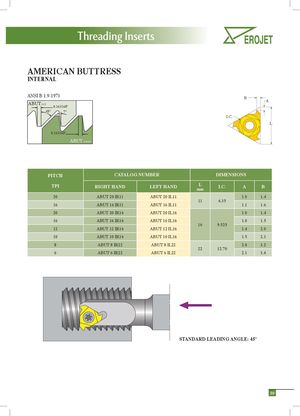

Каталог Erojet резьбонарезные пластины и державки - страница 41
Навигация
Каталог Erojet монолитные резбофрезы
AMERICAN BUTTRESS
INTERNAL
ANSI B 1.9-1973
ABUT
NUT 0.16316P 45° 7°
0.16316P
ABUT
SCREW
I.C.
B A
L
| PITCH | CATALOG | NUMBER | DIMENS | IONS | ||
| TPI | RIGHT HAND | LEFT HAND | L mm | I.C. | A | B |
| 20 | ABUT 20 IR11 | ABUT 20 IL11 | 11 | 635 | 1.0 | 1.4 |
| 16 | ABUT 16 IR11 | ABUT 16 IL11 | . | 1.1 | 1.6 | |
| 20 | ABUT 20 IR16 | ABUT 20 IL16 | 1.0 | 1.4 | ||
| 16 | ABUT 16 IR16 | ABUT 16 IL16 | 16 | 9525 | 1.0 | 1.5 |
| 12 | ABUT 12 IR16 | ABUT 12 IL16 | . | 1.4 | 2.0 | |
| 10 | ABUT 10 IR16 | ABUT 10 IL16 | 1.5 | 2.3 | ||
| 8 | ABUT 8 IR22 | ABUT 8 IL22 | 2.0 | 3.2 | ||
| 6 | ABUT 6 IR22 | ABUT 6 IL22 | 22 | 12.70 | 2.1 | 3.4 |
