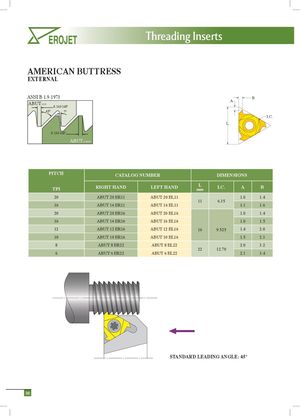

AMERICAN BUTTRESS
EXTERNAL
ANSI B 1.9-1973 B ABUT A NUT 0.16316P 45° 7° I.C. L 0.16316P
ABUT
SCREW
| PITCH | CATALOG | NUMBER | DIMEN | SIONS | ||
| TPI | RIGHT HAND | LEFT HAND | L mm | I.C. | A | B |
| 20 | ABUT 20 ER11 | ABUT 20 EL11 | 11 | 635 | 1.0 | 1.4 |
| 16 | ABUT 16 ER11 | ABUT 16 EL11 | . | 1.1 | 1.6 | |
| 20 | ABUT 20 ER16 | ABUT 20 EL16 | 1.0 | 1.4 | ||
| 16 | ABUT 16 ER16 | ABUT 16 EL16 | 1.0 | 1.5 | ||
| 12 | ABUT 12 ER16 | ABUT 12 EL16 | 16 | 9.525 | 1.4 | 2.0 |
| 10 | ABUT 10 ER16 | ABUT 10 EL16 | 1.5 | 2.3 | ||
| 8 | ABUT 8 ER22 | ABUT 8 EL22 | 2.0 | 3.2 | ||
| 6 | ABUT 6 ER22 | ABUT 6 EL22 | 22 | 12.70 | 2.1 | 3.4 |
