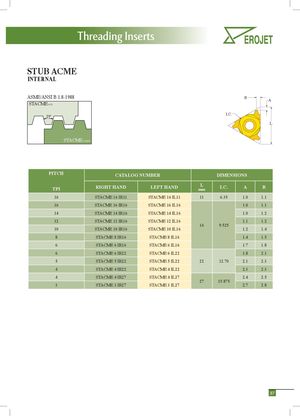

STUB ACME
INTERNAL
ASME/ANSI B 1.8-1988
STACME
NUT 29° I.C.
STACME
SCREW
B
A
L
| PITCH | CATALOG | NUMBER | DIMENS | IONS | ||
| TPI | RIGHT HAND | LEFT HAND | L mm | I.C. | A | B |
| 16 | STACME 16 IR11 | STACME 16 IL11 | 11 | 6.35 | 1.0 | 1.1 |
| 16 | STACME 16 IR16 | STACME 16 IL16 | 1.0 | 1.1 | ||
| 14 | STACME 14 IR16 | STACME 14 IL16 | 1.0 | 1.2 | ||
| 12 | STACME 12 IR16 | STACME 12 IL16 | 16 | 9525 | 1.1 | 1.2 |
| 10 | STACME 10 IR16 | STACME 10 IL16 | . | 1.2 | 1.4 | |
| 8 | STACME 8 IR16 | STACME 8 IL16 | 1.4 | 1.5 | ||
| 6 | STACME 6 IR16 | STACME 6 IL16 | 1.7 | 1.8 | ||
| 6 | STACME 6 IR22 | STACME 6 IL22 | 1.8 | 2.1 | ||
| 5 | STACME 5 IR22 | STACME 5 IL22 | 22 | 12.70 | 2.1 | 2.3 |
| 4 | STACME 4 IR22 | STACME 4 IL22 | 2.3 | 2.3 | ||
| 4 | STACME 4 IR27 | STACME 4 IL27 | 2.4 | 2.5 | ||
| 3 | STACME 3 IR27 | STACME 3 IL27 | 27 | 15.875 | 2.7 | 2.8 |
