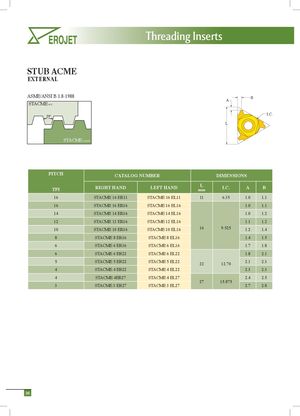

Каталог Erojet резьбонарезные пластины и державки - страница 38
Навигация
Каталог Erojet монолитные резбофрезы
STUB ACME
EXTERNAL
ASME/ANSI B 1.8-1988
STACME
NUT 29°
STACME
SCREW
B A I.C. L
| PITCH | CATALOG | NUMBER | DIMENSI | ONS | ||
| TPI | RIGHT HAND | LEFT HAND | L mm | I.C. | A | B |
| 16 | STACME 16 ER11 | STACME 16 EL11 | 11 | 6.35 | 1.0 | 1.1 |
| 16 | STACME 16 ER16 | STACME 16 EL16 | 1.0 | 1.1 | ||
| 14 | STACME 14 ER16 | STACME 14 EL16 | 1.0 | 1.2 | ||
| 12 | STACME 12 ER16 | STACME 12 EL16 | 1.1 | 1.2 | ||
| 10 | STACME 10 ER16 | STACME 10 EL16 | 16 | 9.525 | 1.2 | 1.4 |
| 8 | STACME 8 ER16 | STACME 8 EL16 | 1.4 | 1.5 | ||
| 6 | STACME 6 ER16 | STACME 6 EL16 | 1.7 | 1.8 | ||
| 6 | STACME 6 ER22 | STACME 6 EL22 | 1.8 | 2.1 | ||
| 5 | STACME 5 ER22 | STACME 5 EL22 | 22 | 12.70 | 2.1 | 2.3 |
| 4 | STACME 4 ER22 | STACME 4 EL22 | 2.3 | 2.3 | ||
| 4 | STACME 4ER27 | STACME 4 EL27 | 2.4 | 2.5 | ||
| 3 | STACME 3 ER27 | STACME 3 EL27 | 27 | 15.875 | 2.7 | 2.8 |
