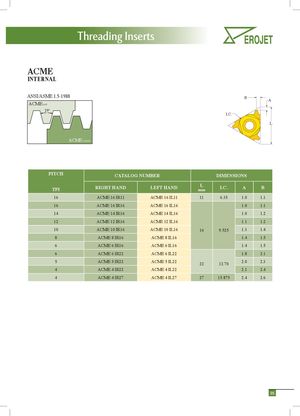

Каталог Erojet резьбонарезные пластины и державки - страница 37
Навигация
Каталог Erojet монолитные резбофрезы
ACME
INTERNAL
ANSI/ASME 1.5-1988
ACME
NUT 29°
ACME
SCREW
I.C.
B
A
L
| PITCH | CATALOG | NUMBER | DIMENS | IONS | ||
| TPI | RIGHT HAND | LEFT HAND | L mm | I.C. | A | B |
| 16 | ACME 16 IR11 | ACME 16 IL11 | 11 | 6.35 | 1.0 | 1.1 |
| 16 | ACME 16 IR16 | ACME 16 IL16 | 1.0 | 1.1 | ||
| 14 | ACME 14 IR16 | ACME 14 IL16 | 1.0 | 1.2 | ||
| 12 | ACME 12 IR16 | ACME 12 IL16 | 1.1 | 1.2 | ||
| 10 | ACME 10 IR16 | ACME 10 IL16 | 16 | 9.525 | 1.3 | 1.4 |
| 8 | ACME 8 IR16 | ACME 8 IL16 | 1.4 | 1.5 | ||
| 6 | ACME 6 IR16 | ACME 6 IL16 | 1.4 | 1.5 | ||
| 6 | ACME 6 IR22 | ACME 6 IL22 | 1.8 | 2.1 | ||
| 5 | ACME 5 IR22 | ACME 5 IL22 | 22 | 12.70 | 2.0 | 2.3 |
| 4 | ACME 4 IR22 | ACME 4 IL22 | 2.1 | 2.4 | ||
| 4 | ACME 4 IR27 | ACME 4 IL27 | 27 | 15.875 | 2.4 | 2.6 |
