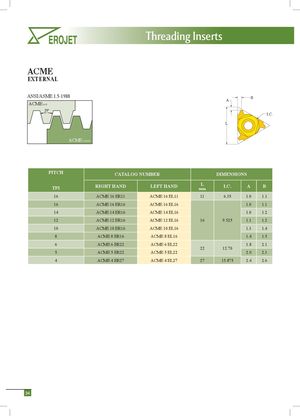

Каталог Erojet резьбонарезные пластины и державки - страница 36
Навигация
Каталог Erojet монолитные резбофрезы
ACME
EXTERNAL
ANSI/ASME 1.5-1988
ACME
NUT 29°
ACME
SCREW
A
L
B
I.C.
| PITCH | CATALOG | NUMBER | DIMENSIO | NS | ||
| TPI | RIGHT HAND | LEFT HAND | L mm | I.C. | A | B |
| 16 | ACME 16 ER11 | ACME 16 EL11 | 11 | 6.35 | 1.0 | 1.1 |
| 16 | ACME 16 ER16 | ACME 16 EL16 | 1.0 | 1.1 | ||
| 14 | ACME 14 ER16 | ACME 14 EL16 | 1.0 | 1.2 | ||
| 12 | ACME 12 ER16 | ACME 12 EL16 | 16 | 9.525 | 1.1 | 1.2 |
| 10 | ACME 10 ER16 | ACME 10 EL16 | 1.3 | 1.4 | ||
| 8 | ACME 8 ER16 | ACME 8 EL16 | 1.4 | 1.5 | ||
| 6 | ACME 6 ER22 | ACME 6 EL22 | 1.8 | 2.1 | ||
| 5 | ACME 5 ER22 | ACME 5 EL22 | 22 | 12.70 | 2.0 | 2.3 |
| 4 | ACME 4 ER27 | ACME 4 EL27 | 27 | 15.875 | 2.4 | 2.6 |
