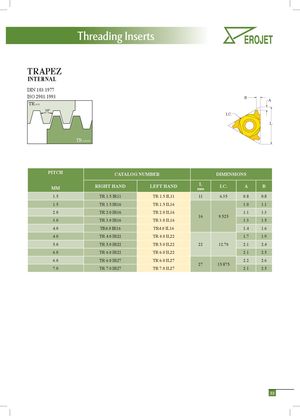

Каталог Erojet резьбонарезные пластины и державки - страница 35
Навигация
Каталог Erojet монолитные резбофрезы
TRAPEZ
INTERNAL
DIN 103:1977
ISO 2901:1993
TR
NUT 30°
TR
SCREW
I.C.
B
A
L
| PITCH | CATALOG | NUMBER | DIMENSI | ONS | ||
| MM | RIGHT HAND | LEFT HAND | L mm | I.C. | A | B |
| 1.5 | TR 1.5 IR11 | TR 1.5 IL11 | 11 | 6.35 | 0.8 | 0.8 |
| 1.5 | TR 1.5 IR16 | TR 1.5 IL16 | 1.0 | 1.1 | ||
| 2.0 | TR 2.0 IR16 | TR 2.0 IL16 | 16 | 9525 | 1.1 | 1.3 |
| 3.0 | TR 3.0 IR16 | TR 3.0 IL16 | . | 1.3 | 1.5 | |
| 4.0 | TR4.0 IR16 | TR4.0 IL16 | 1.4 | 1.6 | ||
| 4.0 | TR 4.0 IR22 | TR 4.0 IL22 | 1.7 | 1.9 | ||
| 5.0 | TR 5.0 IR22 | TR 5.0 IL22 | 22 | 12.70 | 2.1 | 2.4 |
| 6.0 | TR 6.0 IR22 | TR 6.0 IL22 | 2.1 | 2.5 | ||
| 6.0 | TR 6.0 IR27 | TR 6.0 IL27 | 2.2 | 2.6 | ||
| 7.0 | TR 7.0 IR27 | TR 7.0 IL27 | 27 | 15.875 | 2.1 | 2.5 |
