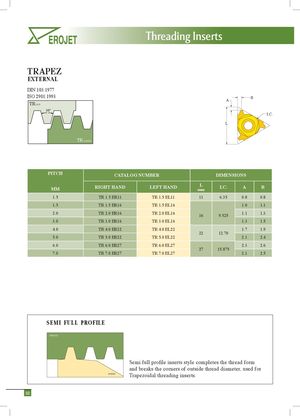

Каталог Erojet резьбонарезные пластины и державки - страница 34
Навигация
Каталог Erojet монолитные резбофрезы
TRAPEZ
EXTERNAL
DIN 103:1977
ISO 2901:1993
TR
NUT 30°
TR
SCREW
B A I.C. L
| PITCH | CATALOG | NUMBER | DIMENSI | ONS | ||
| MM | RIGHT HAND | LEFT HAND | L mm | I.C. | A | B |
| 1.5 | TR 1.5 ER11 | TR 1.5 EL11 | 11 | 6.35 | 0.8 | 0.8 |
| 1.5 | TR 1.5 ER16 | TR 1.5 EL16 | 1.0 | 1.1 | ||
| 2.0 | TR 2.0 ER16 | TR 2.0 EL16 | 16 | 9.525 | 1.1 | 1.3 |
| 3.0 | TR 3.0 ER16 | TR 3.0 EL16 | 1.3 | 1.5 | ||
| 4.0 | TR 4.0 ER22 | TR 4.0 EL22 | 22 | 1270 | 1.7 | 1.9 |
| 5.0 | TR 5.0 ER22 | TR 5.0 EL22 | . | 2.1 | 2.4 | |
| 6.0 | TR 6.0 ER27 | TR 6.0 EL27 | 2 | 155 | 2.3 | 2.6 |
| 7.0 | TR 7.0 ER27 | TR 7.0 EL27 | 7 | .87 | 2.1 | 2.5 |
SEMI FULL PROFILE
THREAD
Semi full profile inserts style completes the thread form
and breaks the corners of outside thread diameter, used for
INSERT Trapezoidal threading inserts.
