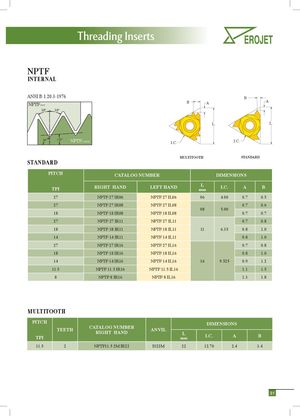

Каталог Erojet резьбонарезные пластины и державки - страница 33

Каталог Erojet монолитные резбофрезы

Каталог Erojet монолитные резбофрезы

NPTF

INTERNAL

ANSI B 1.20.3-1976

B

NPTF			B	A		A
	NUT
	30°	30°
					L	L

90° 1°47' NPTF I.C.

SCREW I.C. MULTITOOTH STANDARD STANDARD

PITCH	CATALOG	NUMBER		DIMENS	IONS
TPI	RIGHT HAND	LEFT HAND	L mm	I.C.	A	B
27	NPTF 27 IR06	NPTF 27 IL06	06	4.00	0.7	0.5
27	NPTF 27 IR08	NPTF 27 IL08	08	500	0.7	0.6
18	NPTF 18 IR08	NPTF 18 IL08		.	0.7	0.7
27	NPTF 27 IR11	NPTF 27 IL11			0.7	0.8
18	NPTF 18 IR11	NPTF 18 IL11	11	6.35	0.8	1.0
14	NPTF 14 IR11	NPTF 14 IL11			0.8	1.0
27	NPTF 27 IR16	NPTF 27 IL16			0.7	0.8
18	NPTF 18 IR16	NPTF 18 IL16			0.8	1.0
14	NPTF 14 IR16	NPTF 14 IL16	16	9.525	0.9	1.2
11.5	NPTF 11.5 IR16	NPTF 11.5 IL16			1.1	1.5
8	NPTF 8 IR16	NPTF 8 IL16			1.3	1.8

MULTITOOTH

PITCH TPI	TEETH	CATALOG NUMBER RIGHT HAND	ANVIL	L mm	DIMEN I.C.	SIONS A	B
11.5	2	NPTF11.5 2M IR22	IS22M	22	12.70	2.4	3.4
