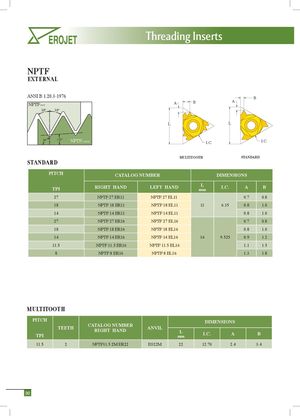

Каталог Erojet резьбонарезные пластины и державки - страница 32

Каталог Erojet монолитные резбофрезы

Каталог Erojet монолитные резбофрезы

NPTF

EXTERNAL

ANSI B 1.20.3-1976

B

NPTF				A	B	A
	NUT
	30°	30°
			L			L

90°	1°47'	NPTF			I.C.
			SCREW	I.C.

STANDARD MULTITOOTH STANDARD

PITCH	CATALOG	NUMBER		DIMENSI	ONS
TPI	RIGHT HAND	LEFT HAND	L mm	I.C.	A	B
27	NPTF 27 ER11	NPTF 27 EL11			0.7	0.8
18	NPTF 18 ER11	NPTF 18 EL11	11	6.35	0.8	1.0
14	NPTF 14 ER11	NPTF 14 EL11			0.8	1.0
27	NPTF 27 ER16	NPTF 27 EL16			0.7	0.8
18	NPTF 18 ER16	NPTF 18 EL16			0.8	1.0
14	NPTF 14 ER16	NPTF 14 EL16	16	9.525	0.9	1.2
11.5	NPTF 11.5 ER16	NPTF 11.5 EL16			1.1	1.5
8	NPTF 8 ER16	NPTF 8 EL16			1.3	1.8

MULTITOOTH

PITCH TPI	TEETH	CATALOG NUMBER RIGHT HAND	ANVIL	L mm	DIMEN I.C.	SIONS A	B
11.5	2	NPTF11.5 2M ER22	ES22M	22	12.70	2.4	3.4
