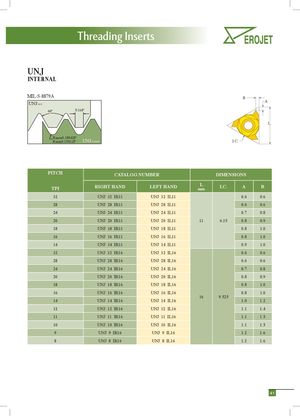

Каталог Erojet резьбонарезные пластины и державки - страница 43

Каталог Erojet монолитные резбофрезы

Каталог Erojet монолитные резбофрезы

UNJ

INTERNAL

MIL-S-8879A

B UNJ A NUT 60° 5/16P L Rmax0.18042P UNJ Rmin0.15011P I.C. SCREW

PITCH	CATALOG	NUMBER			DIMENS	IONS
TPI	RIGHT HAND	LEF	T HAND	L mm	I.C.	A	B
32	UNJ 32 IR11	UNJ	32 IL11			0.6	0.6
28	UNJ 28 IR11	UNJ	28 IL11			0.6	0.6
24	UNJ 24 IR11	UNJ	24 IL11			0.7	0.8
20	UNJ 20 IR11	UNJ	20 IL11	11	6.35	0.8	0.9
18	UNJ 18 IR11	UNJ	18 IL11			0.8	1.0
16	UNJ 16 IR11	UNJ	16 IL11			0.8	1.0
14	UNJ 14 IR11	UNJ	14 IL11			0.9	1.0
32	UNJ 32 IR16	UNJ	32 IL16			0.6	0.6
28	UNJ 28 IR16	UNJ	28 IL16			0.6	0.6
24	UNJ 24 IR16	UNJ	24 IL16			0.7	0.8
20	UNJ 20 IR16	UNJ	20 IL16			0.8	0.9
18	UNJ 18 IR16	UNJ	18 IL16			0.8	1.0
16	UNJ 16 IR16	UNJ	16 IL16			0.8	1.0
14	UNJ 14 IR16	UNJ	14 IL16	16	9.525	1.0	1.2
12	UNJ 12 IR16	UNJ	12 IL16			1.1	1.4
11	UNJ 11 IR16	UNJ	11 IL16			1.1	1.5
10	UNJ 10 IR16	UNJ	10 IL16			1.1	1.5
9	UNJ 9 IR16	UNJ	9 IL16			1.2	1.6
8	UNJ 8 IR16	UNJ	8 IL16			1.2	1.6
