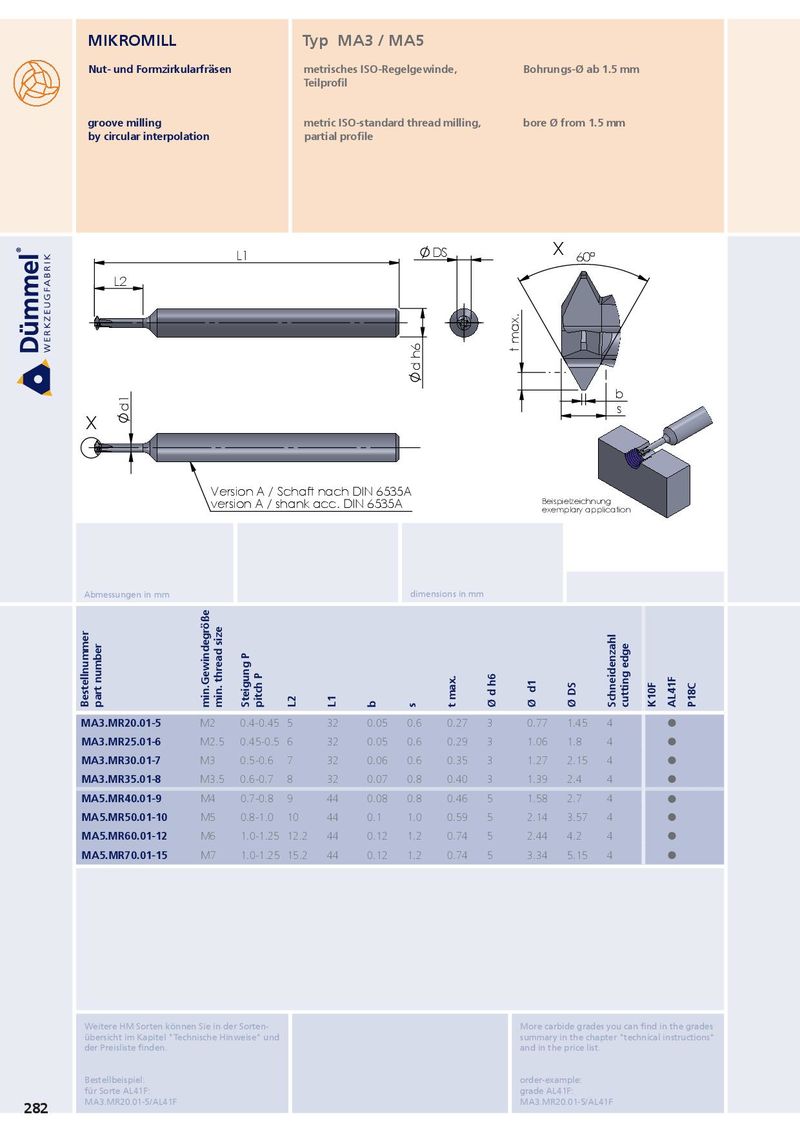

Nut- und Formzirkularfräsen metrisches ISO-Regelgewinde, Bohrungs-Ø ab 1.5 mm
groove milling metric ISO-standard thread milling, bore Ø from 1.5 mm
by circular interpolation partial profile
DS X
L1 60°
L2
b
s
X
Version A / Schaft nach DIN 6535A version A / shank acc. DIN 6535A Beispielzeichnung exemplary application
Abmessungen in mm dimensions in mm
Bestellnummer part number Steigung P pitch P Schneidenzahl cutting edge
| MA3.MR20.01-5 | M2 | 0.4-0.45 5 | 32 | 0.05 | 0.6 | 0.27 | 3 | 0.77 | 1.45 | 4 | | |
| MA3.MR25.01-6 | M2.5 | 0.45-0.5 6 | 32 | 0.05 | 0.6 | 0.29 | 3 | 1.06 | 1.8 | 4 | | |
| MA3.MR30.01-7 | M3 | 0.5-0.6 | 7 | 32 | 0.06 | 0.6 | 0.35 | 3 | 1.27 | 2.15 | 4 | |
| MA3.MR35.01-8 | M3.5 | 0.6-0.7 | 8 | 32 | 0.07 | 0.8 | 0.40 | 3 | 1.39 | 2.4 | 4 | |
| MA5.MR40.01-9 | M4 | 0.7-0.8 | 9 | 44 | 0.08 | 0.8 | 0.46 | 5 | 1.58 | 2.7 | 4 | |
| MA5.MR50.01-10 | M5 | 0.8-1.0 | 10 | 44 | 0.1 | 1.0 | 0.59 | 5 | 2.14 | 3.57 | 4 | |
| MA5.MR60.01-12 | M6 | 1.0-1.25 12.2 | 44 | 0.12 | 1.2 | 0.74 | 5 | 2.44 | 4.2 | 4 | | |
| MA5.MR70.01-15 | M7 | 1.0-1.25 15.2 | 44 | 0.12 | 1.2 | 0.74 | 5 | 3.34 | 5.15 | 4 | |
282 MA3.MR20.01-5/AL41F MA3.MR20.01-5/AL41F
