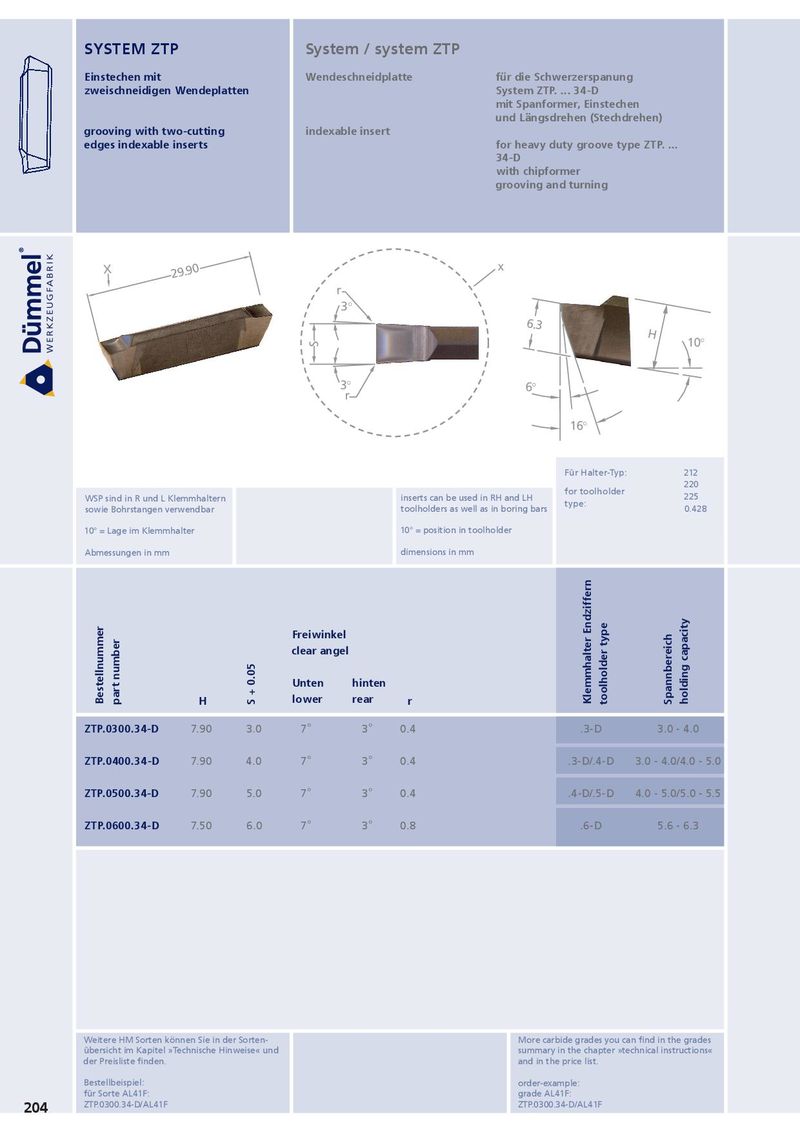

mit Spanformer, Einstechen und Längsdrehen (Stechdrehen) grooving with two-cutting indexable insert edges indexable inserts for heavy duty groove type ZTp. ... 34-D with chipformer grooving and turning
X 29.90 r 3°
3° r
x
6.3
6°
16°
H 10°
Für Halter-Typ: 212 220 for toolholder
WSP sind in R und L Klemmhaltern inserts can be used in RH and LH 225
type:
sowie Bohrstangen verwendbar toolholders as well as in boring bars 0.428
10° = Lage im Klemmhalter 10° = position in toolholder Abmessungen in mm dimensions in mm
Freiwinkel clear angel Unten hinten H lower rear r
| ZTp.0300.34-D | 7.90 | 3.0 | 7° | 3° | 0.4 | .3-D | 3.0 - 4.0 | ||
| ZTp.0400.34-D | 7.90 | 4.0 | 7° | 3° | 0.4 | .3-D/.4-D | 3.0 - 4.0/4.0 - 5.0 | ||
| ZTp.0500.34-D | 7.90 | 5.0 | 7° | 3° | 0.4 | .4-D/.5-D | 4.0 - 5.0/5.0 - 5.5 | ||
| ZTp.0600.34-D | 7.50 | 6.0 | 7° | 3° | 0.8 | .6-D | 5.6 - 6.3 |
204 ZTP.0300.34-D/AL41F ZTP.0300.34-D/AL41F
