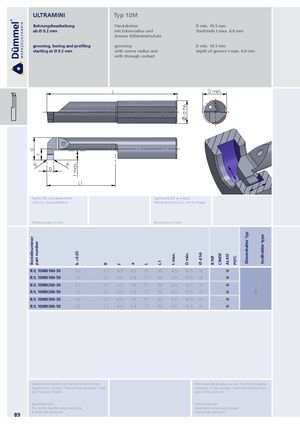

| ab Ø 0.2 mm | mit Eckenradius und | Stechtiefe t max. 4.0 mm |
| innerer Kühlmittelzufuhr | ||
| grooving, boring and profiling | grooving | D min. 10.5 mm |
| starting at Ø 0.2 mm | with corner radius and | depth of groove t max. 4.0 mm |
with through coolant
L D min.
R
R b
L1
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 10M0100-30 | 1.0 | 0.1 | 4.9 | 9.9 | 57 | 30 | 4.0 | 10.5 | 10 | |
| R/L 10M0100-50 | 1.0 | 0.1 | 4.9 | 9.9 | 77 | 50 | 4.0 | 10.5 | 10 | |
| R/L 10M0200-30 | 2.0 | 0.1 | 4.9 | 9.9 | 57 | 30 | 4.0 | 10.5 | 10 | |
| R/L 10M0200-50 | 2.0 | 0.1 | 4.9 | 9.9 | 77 | 50 | 4.0 | 10.5 | 10 | |
| R/L 10M0300-30 | 3.0 | 0.1 | 4.9 | 9.9 | 57 | 30 | 4.0 | 10.5 | 10 | |
| R/L 10M0300-50 | 3.0 | 0.1 | 4.9 | 9.9 | 77 | 50 | 4.0 | 10.5 | 10 | |
