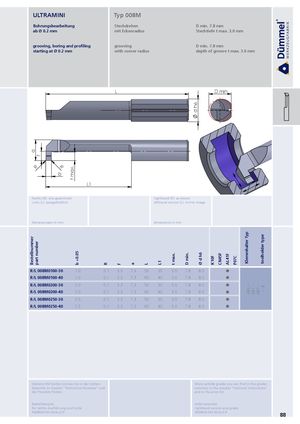

Каталог Duemmel общий 2022 - страница 93
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
| grooving, boring and profiling | grooving | D min. 7.8 mm |
| starting at Ø 0.2 mm | with corner radius | depth of groove t max. 3.0 mm |
L D min.
R
R
b
L1
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 008M0100-30 | 1.0 | 0.1 | 3.3 | 7.3 | 50 | 30 | 3.0 | 7.8 | 8.0 | |
| R/L 008M0100-40 | 1.0 | 0.1 | 3.3 | 7.3 | 60 | 40 | 3.0 | 7.8 | 8.0 | |
| R/L 008M0200-30 | 2.0 | 0.1 | 3.3 | 7.3 | 50 | 30 | 3.0 | 7.8 | 8.0 | |
| R/L 008M0200-40 | 2.0 | 0.1 | 3.3 | 7.3 | 60 | 40 | 3.0 | 7.8 | 8.0 | 680.∙∙∙ 681.∙∙∙ 687.∙∙∙ ∙∙∙.8 |
| R/L 008M0250-30 | 2.5 | 0.1 | 3.3 | 7.3 | 50 | 30 | 3.0 | 7.8 | 8.0 | |
| R/L 008M0250-40 | 2.5 | 0.1 | 3.3 | 7.3 | 60 | 40 | 3.0 | 7.8 | 8.0 | |
