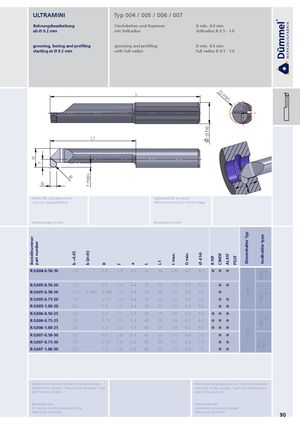

ULTRAMINI Typ 004 / 005 / 006 / 007
| Bohrungsbearbeitung | Stechdrehen und Kopieren | D min. 4.0 mm |
| ab Ø 0.2 mm | mit Vollradius | Vollradius R 0.5 - 1.0 |
| grooving, boring and profiling | grooving and profiling | D min. 4.0 mm |
| starting at Ø 0.2 mm | with full radius | full radius R 0.5 - 1.0 |
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich R b a f | t max. L1 | L | righthan lefthand | d (R): as version ( | shown L): mirror | image d h6 | D min. | ||||
| Abmessungen in mm Bestellnummer part number b +0.05 | b (inch) R | f | a | L | dimensio L1 | ns in mm t max. | D min. | Ø d h6 | K10F CN45F AL41F PD2F | Klemmhalter Typ | toolholder type |
| R/L004-0.50-16 1.0 | 0.5 | 1.5 | 3.5 | 30 | 16 | 0.8 | 4.0 | 4.0 | | 40.∙∙∙ ∙∙∙.4 | |
| R/L005-0.50-20 1.0 R/L005-0.58-20 1.17 | 0.5 0.046" 0.585 | 1.9 1.9 | 4.4 4.4 | 35 35 | 20 20 | 1.0 1.0 | 5.0 5.0 | 5.0 5.0 | | 645.∙∙∙ | 6 .∙∙∙ .5 |
| R/L005-0.75-20 1.5 R/L005-1.00-20 2.0 | 0.75 1.0 | 1.9 1.9 | 4.4 4.4 | 35 35 | 20 20 | 1.0 1.0 | 5.0 5.0 | 5.0 5.0 | | 650 ∙∙∙ | |
| R/L006-0.50-25 1.0 | 0.5 | 2.3 | 5.3 | 40 | 25 | 1.8 | 6.0 | 6.0 | | ∙ | |
| R/L006-0.75-25 1.5 | 0.75 | 2.3 | 5.3 | 40 | 25 | 1.8 | 6.0 | 6.0 | | 60.∙∙ ∙∙∙.6 | |
| R/L006-1.00-25 2.0 | 1.0 | 2.3 | 5.3 | 40 | 25 | 1.8 | 6.0 | 6.0 | | 6.∙∙∙ | 6 |
| R/L007-0.50-30 1.0 | 0.5 | 2.8 | 6.3 | 45 | 30 | 2.5 | 6.8 | 7.0 | | 67 | ∙∙ ∙∙ |
| R/L007-0.75-30 1.5 | 0.75 | 2.8 | 6.3 | 45 | 30 | 2.5 | 6.8 | 7.0 | | 670.∙ 687.∙ ∙∙∙.7 | |
| R/L007-1.00-30 2.0 | 1.0 | 2.8 | 6.3 | 45 | 30 | 2.5 | 6.8 | 7.0 | |
R004-0.50-16/CN45F R004-0.50-16/CN45F
