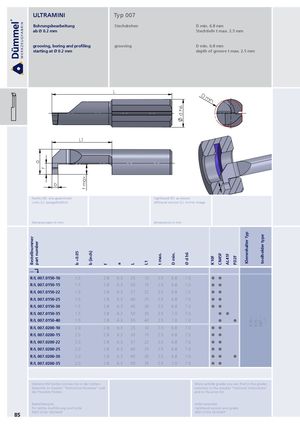

| ULTRAMINI Bohrungsbearbeitu ab Ø 0.2 mm | ng | Typ 0 Stechd | 07 rehen | D min. 6.8 mm Stechtiefe t max. 2.5 m | m | ||
| grooving, boring an i starting at Ø 0.2 mm | d profiling | groovin | g | D min. 6.8 mm depth of groove t max. | 2.5 mm | ||
| Rechts (R): wie gezeichne Links (L): spiegelbildlich b a f | t L1 t max. | L | righthan lefthand | d (R): as shown version (L): mirro d h6 | r image D min. | ||
| Bestellnummer part number ... ↴ Abmessungen in mm | b +0.05 b (inch) f | a | L L1 | t max. dimensi | D min. Ø d h6 ons in mm | K10F CN45F AL41F PD2F | Klemmhalter Typ toolholder type |
| R/L 007.0150-10 R/L 007.0150-15 | 1.5 2.8 1.5 2.8 | 6.3 6.3 | 25 10 30 15 | 2.5 2.5 | 6.8 7.0 6.8 7.0 | | |
| R/L 007.0150-22 | 1.5 2.8 | 6.3 | 37 22 | 2.5 | 6.8 7.0 | | |
| R/L 007.0150-25 | 1.5 2.8 | 6.3 | 40 25 | 2.5 | 6.8 7.0 | | |
| R/L 007.0150-30 | 1.5 2.8 | 6.3 | 45 30 | 2.5 | 6.8 7.0 | | |
| R/L 007.0150-35 | 1.5 2.8 | 6.3 | 50 35 | 2.5 | 7.0 7.0 | | ∙ ∙ ∙ |
| R/L 007.0150-40 | 1.5 2.8 | 6.3 | 55 40 | 2.5 | 7.0 7.0 | | 670.∙∙ 676.∙∙ 687.∙∙ ∙∙∙.7 |
| R/L 007.0200-10 | 2.0 2.8 | 6.3 | 25 10 | 2.5 | 6.8 7.0 | | |
| R/L 007.0200-15 | 2.0 2.8 | 6.3 | 30 15 | 2.5 | 6.8 7.0 | | |
| R/L 007.0200-22 | 2.0 2.8 | 6.3 | 37 22 | 2.5 | 6.8 7.0 | | |
| R/L 007.0200-25 | 2.0 2.8 | 6.3 | 40 25 | 2.5 | 6.8 7.0 | | |
| R/L 007.0200-30 R/L 007.0200-35 | 2.0 2.8 2.0 2.8 | 6.3 6.3 | 45 30 50 35 | 2.5 2.5 | 6.8 7.0 7.0 7.0 | |
