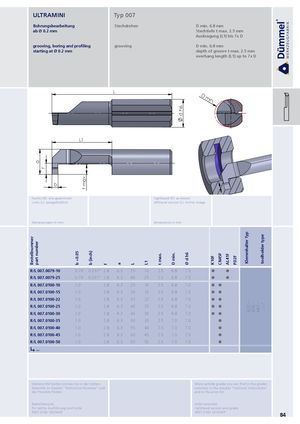

| ULTRAMINI Bohrungsbearbeitu ab Ø 0.2 mm | ng | Typ 007 Stechdrehen | D min. 6.8 mm Stechtiefe t max. 2.5 mm Auskragung (L1) bis 7x D | ||
| grooving, boring an i starting at Ø 0.2 mm | d profiling | grooving | D min. 6.8 mm depth of groove t max. 2.5 mm overhang length (L1) up to 7x D | ||
| Rechts (R): wie gezeichne Links (L): spiegelbildlich b a f | t L1 t max. | L | righthan lefthand | d (R): as shown version (L): mirro d h6 | r image D min. |
| Abmessungen in mm nummer mber | ) | dimensio | ns in mm | halter Typ lder type | |
| Bestell part nu | b +0.05 b (inch f | a L L1 | t max. | D min. Ø d h6 | K10F CN45F AL41F PD2F Klemm toolho |
| R/L 007.0079-10 | 0.79 0.031“ 2.8 | 6.3 25 10 | 2.5 | 6.8 7.0 | |
| R/L 007.0079-25 | 0.79 0.031“ 2.8 | 6.3 40 25 | 2.5 | 6.8 7.0 | |
| R/L 007.0100-10 R/L 007.0100-15 | 1.0 2.8 1.0 2.8 | 6.3 25 10 6.3 30 15 | 2.5 2.5 | 6.8 7.0 6.8 7.0 | |
| R/L 007.0100-22 | 1.0 2.8 | 6.3 37 22 | 2.5 | 6.8 7.0 | ∙∙ ∙∙ ∙∙ |
| R/L 007.0100-25 | 1.0 2.8 | 6.3 40 25 | 2.5 | 6.8 7.0 | 70.∙ 76.∙ 87.∙ ∙∙∙.7 |
| R/L 007.0100-30 | 1.0 2.8 | 6.3 45 30 | 2.5 | 6.8 7.0 | 6 6 6 |
| R/L 007.0100-35 | 1.0 2.8 | 6.3 50 35 | 2.5 | 7.0 7.0 | |
| R/L 007.0100-40 | 1.0 2.8 | 6.3 55 40 | 2.5 | 7.0 7.0 | |
| R/L 007.0100-45 R/L 007.0100-50 ↳ ... | 1.0 2.8 1.0 2.8 | 6.3 60 45 6.3 65 50 | 2.5 2.5 | 7.0 7.0 7.0 7.0 | |
