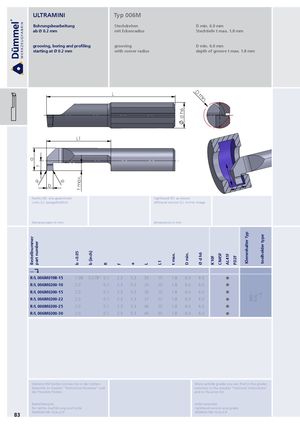

Каталог Duemmel общий 2022 - страница 88
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
| grooving, boring and profiling | grooving | D min. 6.0 mm |
| starting at Ø 0.2 mm | with corner radius | depth of groove t max. 1.8 mm |
| Rechts (R): wie gezeichne Links (L): spiegelbildlich Abmessungen in mm Bestellnummer part number a R R f b | t b +0.05 t max. L1 | b (inch) R | f L | a | L | righthan lefthand dimensio L1 | d (R): as shown version (L): mirror ns in mm t max. D min. d h6 | image Ø d h6 D min. | K10F CN45F AL41F PD2F Klemmhalter Typ toolholder type |
| ↴ | |||||||||
| ... R/L 006M0198-15 R/L 006M0200-10 R/L 006M0200-15 | 1.98 2.0 2.0 | 0.078“ 0.1 0.1 0.1 | 2.3 2.3 2.3 | 5.3 5.3 5.3 | 30 25 30 | 15 10 15 | 1.8 6.0 1.8 6.0 1.8 6.0 | 6.0 6.0 6.0 | .∙∙∙ .∙∙∙ 6 |
| R/L 006M0200-22 | 2.0 | 0.1 | 2.3 | 5.3 | 37 | 22 | 1.8 6.0 | 6.0 | 660 676 ∙∙∙. |
| R/L 006M0200-25 R/L 006M0200-30 | 2.0 2.0 | 0.1 0.1 | 2.3 2.3 | 5.3 5.3 | 40 45 | 25 30 | 1.8 6.0 1.8 6.0 | 6.0 6.0 | |
