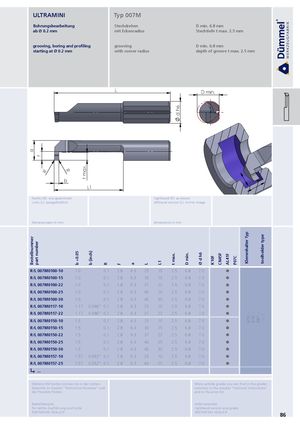

| ULTRAMINI Bohrungsbearbeitung ab Ø 0.2 mm | Typ Stechd mit Ec | 007M rehen kenradius | | | | D min. Stecht | 6.8 mm iefe t max. 2.5 mm |
| grooving, boring and profiling starting at Ø 0.2 mm | groovi with c | ng orner radius | | | | D min. depth | 6.8 mm of groove t max. 2.5 mm |
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich R R a b t max. L1 f | L | | righthan lefthand | d (R): as sh version (L) d h6 | own : mirro | r image D m | in. |
| Abmessungen in mm nummer umber 5 ) | | | dimensio | ns in mm | | | mhalter Typ older type |
| Bestell part n b +0.0 b (inch R R/L 007M010010 10 01 | f 28 | a L 63 25 | L1 10 | t max. 25 | D min. 68 | Ø d h6 70 | K10F CN45F AL41F P07C Klem toolh |
| - . . R/L 007M0100-15 1.0 0.1 | . 2.8 | . 6.3 30 | 15 | . 2.5 | . 6.8 | . 7.0 | |
| R/L 007M0100-22 1.0 0.1 | 2.8 | 6.3 37 | 22 | 2.5 | 6.8 | 7.0 | |
| R/L 007M0100-25 1.0 0.1 | 2.8 | 6.3 40 | 25 | 2.5 | 6.8 | 7.0 | |
| R/L 007M0100-30 1.0 0.1 | 2.8 | 6.3 45 | 30 | 2.5 | 6.8 | 7.0 | |
| R/L 007M0117-10 1.17 0.046“ 0.1 | 2.8 | 6.3 25 | 10 | 2.5 | 6.8 | 7.0 | |
| R/L 007M0117-22 1.17 0.046“ 0.1 | 2.8 | 6.3 37 | 22 | 2.5 | 6.8 | 7.0 | 0.∙∙∙ 6.∙∙∙ 7.∙∙∙ ∙.7 |
| R/L 007M0150-10 1.5 0.1 | 2.8 | 6.3 25 | 10 | 2.5 | 6.8 | 7.0 | 67 67 68 ∙∙ |
| R/L 007M0150-15 1.5 0.1 | 2.8 | 6.3 30 | 15 | 2.5 | 6.8 | 7.0 | |
| R/L 007M0150-22 1.5 0.1 | 2.8 | 6.3 37 | 22 | 2.5 | 6.8 | 7.0 | |
| R/L 007M0150-25 1.5 0.1 | 2.8 | 6.3 40 | 25 | 2.5 | 6.8 | 7.0 | |
| R/L 007M0150-30 1.5 0.1 | 2.8 | 6.3 45 | 30 | 2.5 | 6.8 | 7.0 | |
| R/L 007M0157-10 1.57 0.062“ 0.1 R/L 007M0157-25 1.57 0.062“ 0.1 ↳ ... | 2.8 2.8 | 6.3 25 6.3 40 | 10 25 | 2.5 2.5 | 6.8 6.8 | 7.0 7.0 | |
