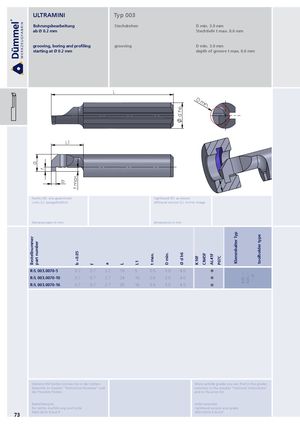

grooving, boring and profiling grooving D min. 3.0 mm
starting at Ø 0.2 mm depth of groove t max. 0.6 mm
L
D m
in.
L1
b
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 003.0070-5 | 0.7 | 0.7 | 2.7 | 19 | 5 | 0.6 | 3.0 | 4.0 | | |
| R/L 003.0070-10 | 0.7 | 0.7 | 2.7 | 24 | 10 | 0.6 | 3.0 | 4.0 | | |
| 640.∙∙∙ 645.∙∙∙ ∙∙∙.4 | ||||||||||
| R/L 003.0070-16 | 0.7 | 0.7 | 2.7 | 30 | 16 | 0.6 | 3.0 | 4.0 | |
