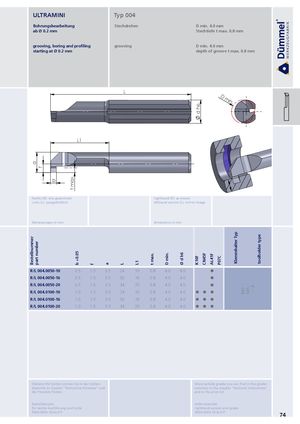

Каталог Duemmel общий 2022 - страница 79
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
grooving, boring and profiling grooving D min. 4.0 mm
starting at Ø 0.2 mm depth of groove t max. 0.8 mm
L D m
in.
L1
b
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 004.0050-10 | 0.5 | 1.5 | 3.5 | 24 | 10 | 0.8 | 4.0 | 4.0 | | |
| R/L 004.0050-16 | 0.5 | 1.5 | 3.5 | 30 | 16 | 0.8 | 4.0 | 4.0 | | |
| R/L 004.0050-20 | 0.5 | 1.5 | 3.5 | 34 | 20 | 0.8 | 4.0 | 4.0 | | |
| R/L 004.0100-10 | 1.0 | 1.5 | 3.5 | 24 | 10 | 0.8 | 4.0 | 4.0 | | 640.∙∙∙ 645.∙∙∙ ∙∙∙.4 |
| R/L 004.0100-16 | 1.0 | 1.5 | 3.5 | 30 | 16 | 0.8 | 4.0 | 4.0 | | |
| R/L 004.0100-20 | 1.0 | 1.5 | 3.5 | 34 | 20 | 0.8 | 4.0 | 4.0 | |
