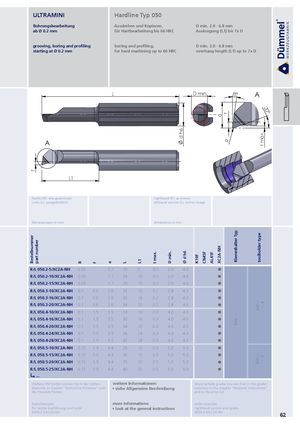

ULTRAMINI Hardline Typ 050

ab Ø 0.2 mm	für Hartbearbeitung bis 66 HRC	Auskragung (L1) bis 7x D
grooving, boring and profiling	boring and profiling,	D min. 2.0 - 6.8 mm
starting at Ø 0.2 mm	for hard machining up to 66 HRC	overhang length (L1) up to 7x D

Rechts (R): wie gezeichnet Links (L): spiegelbildlich L1 f A			L			righth leftha	and (R): a nd version	s shown (L): mir d h6	ror image D min. a	R t max. 20° 8° f A
Bestellnummer part number Abmessungen in mm	R	f	a	L	L1	t max. dimen	D min. sions in m	Ø d h6 m	K10F CN45F AL41F XC2A-NH	Klemmhalter Typ toolholder type
R/L 050.2-5/XC2A-NH R/L 050.2-10/XC2A-NH R/L 050.2-15/XC2A-NH	0.05 0.05 0.05		1.7 1.7 1.7	19 24 29	5 10 15	0.1 0.1 0.1	2.0 2.0 2.0	4.0 4.0 4.0	  
R/L 050.3-10/XC2A-NH	0.1	0.6	2.6	24	10	0.2	2.8	4.0	
R/L 050.3-16/XC2A-NH	0.1	0.6	2.6	30	16	0.2	2.8	4.0		∙∙
R/L 050.3-20/XC2A-NH	0.1	0.6	2.6	34	20	0.2	2.8	4.0		40.∙ ∙∙∙.4
R/L 050.4-10/XC2A-NH	0.1	1.5	3.5	24	10	0.3	4.0	4.0		∙∙ 6
R/L 050.4-16/XC2A-NH	0.1	1.5	3.5	30	16	0.3	4.0	4.0		45.∙
R/L 050.4-20/XC2A-NH	0.1	1.5	3.5	34	20	0.3	4.0	4.0		6
R/L 050.4-24/XC2A-NH	0.1	1.5	3.5	38	24	0.3	4.0	4.0	
R/L 050.4-28/XC2A-NH	0.1	1.5	3.5	42	28	0.3	4.0	4.0	
R/L 050.5-10/XC2A-NH	0.15	1.9	4.4	25	10	0.5	5.0	5.0	
R/L 050.5-15/XC2A-NH	0.15	1.9	4.4	30	15	0.5	5.0	5.0		0.∙∙∙ .5
R/L 050.5-20/XC2A-NH	0.15	1.9	4.4	35	20	0.5	5.0	5.0		65 ∙∙∙
R/L 050.5-25/XC2A-NH ↳ ...	0.15	1.9	4.4	40	25	0.5	5.0	5.0	

R050.2-5/XC2A-NH R050.2-5/XC2A-NH 62
