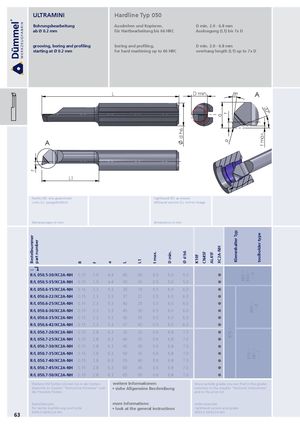

| ULTRAMINI Bohrungsbearbeitung ab Ø 0.2 mm | Hardli Ausdrehe für Hartb | ne Ty nundK earbeitu | p 050 opieren, ng bis 6 | 6 HRC | D min. 2.0 - 6.8 mm Auskragung (L1) bis 7x D | |
| grooving, boring and profiling starting at Ø 0.2 mm | i | boring an i for hard | d profil machini | iing, ng up to | 66 HRC | D min. 2.0 - 6.8 mm overhang length (L1) up to 7x D |
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich L1 f A | L | righth leftha | and (R): as shown nd version (L): mir d h6 | ror image D min. R t max. 20° 8° a f A | ||
| Bestellnummer part number R f Abmessungen in mm | a | L | L1 | t max. dimen | D min. Ø d h6 sions in mm | K10F CN45F AL41F XC2A-NH Klemmhalter Typ toolholder type |
| ... ↴ R/L 050.5-30/XC2A-NH 0.15 1.9 R/L 050.5-35/XC2A-NH 0.15 1.9 | 4.4 4.4 | 45 50 | 30 35 | 0.5 0.5 | 5.0 5.0 5.0 5.0 | 645.∙∙∙ 650.∙∙∙ ∙∙∙.5 |
| R/L 050.6-15/XC2A-NH 0.15 2.3 R/L 050.6-22/XC2A-NH 0.15 2.3 | 5.3 5.3 | 30 37 | 15 22 | 0.5 0.5 | 6.0 6.0 6.0 6.0 | |
| R/L 050.6-25/XC2A-NH 0.15 2.3 | 5.3 | 40 | 25 | 0.5 | 6.0 6.0 | 0.∙∙∙ .6 |
| R/L 050.6-30/XC2A-NH 0.15 2.3 | 5.3 | 45 | 30 | 0.5 | 6.0 6.0 | 66 ∙∙∙ |
| R/L 050.6-35/XC2A-NH 0.15 2.3 | 5.3 | 50 | 35 | 0.5 | 6.0 6.0 | |
| R/L 050.6-42/XC2A-NH 0.15 2.3 | 5.3 | 57 | 42 | 0.5 | 6.0 6.0 | ∙∙ |
| R/L 050.7-20/XC2A-NH 0.15 2.8 | 6.3 | 35 | 20 | 0.6 | 6.8 7.0 | 76.∙ |
| R/L 050.7-25/XC2A-NH 0.15 2.8 | 6.3 | 40 | 25 | 0.6 | 6.8 7.0 | 6 |
| R/L 050.7-30/XC2A-NH 0.15 2.8 | 6.3 | 45 | 30 | 0.6 | 6.8 7.0 | ∙∙∙ ∙∙∙ 7 |
| R/L 050.7-35/XC2A-NH 0.15 2.8 | 6.3 | 50 | 35 | 0.6 | 6.8 7.0 | 70. 87. ∙∙∙. |
| R/L 050.7-40/XC2A-NH 0.15 2.8 | 6.3 | 55 | 40 | 0.6 | 6.8 7.0 | 6 6 |
| R/L 050.7-45/XC2A-NH 0.15 2.8 R/L 050.7-50/XC2A-NH 0.15 2.8 | 6.3 6.3 | 60 65 | 45 50 | 0.6 0.6 | 6.8 7.0 6.8 7.0 | |
63 R050.5-30/XC2A-NH R050.5-30/XC2A-NH
