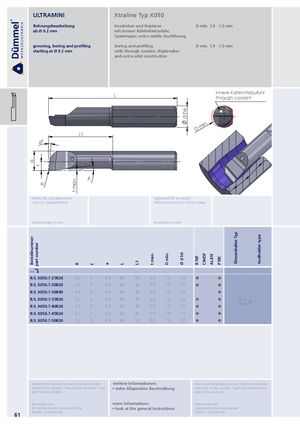

Spantreppe, extra stabile Ausführung
grooving, boring and profiling boring and profiling D min. 1.0 - 7.0 mm
starting at Ø 0.2 mm with through coolant, chipbreaker and extra solid construction
L innere Kühlmittelzufuhr
through coolant
L1
6°
in.
D m
7
R
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L X050.7-25R20 | 0.2 | 3 | 6.5 | 40 | 25 | 0.5 | 7.0 | 7.0 | | |
| R/L X050.7-30R20 | 0.2 | 3 | 6.5 | 45 | 30 | 0.5 | 7.0 | 7.0 | | |
| R/L X050.7-30R40 | 0.4 | 3 | 6.5 | 45 | 30 | 0.5 | 7.0 | 7.0 | | |
| R/L X050.7-35R20 | 0.2 | 3 | 6.5 | 50 | 35 | 0.5 | 7.0 | 7.0 | | |
| 676.∙∙∙ 670.∙∙∙ 687.∙∙∙ ∙∙∙.7 | ||||||||||
| R/L X050.7-40R20 | 0.2 | 3 | 6.5 | 55 | 40 | 0.5 | 7.0 | 7.0 | | |
| R/L X050.7-45R20 | 0.2 | 3 | 6.5 | 60 | 45 | 0.5 | 7.0 | 7.0 | | |
| R/L X050.7-50R20 | 0.2 | 3 | 6.5 | 65 | 50 | 0.5 | 7.0 | 7.0 | | |
