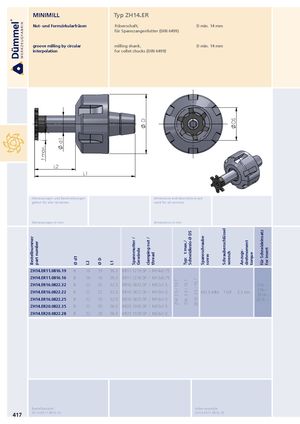

groove milling by circular milling shank, D min. 14 mm
interpolation for collet chucks (DIN 6499)
L2
L1
Abmessungen und Beschreibungen dimensions and descriptions are gelten für alle Varianten valid for all versions
Abmessungen in mm dimensions in mm
| ZH14.ER11.0816.19 | 8 | 16 | 19 | 36.3 | ER11.1219.SP / M14x0.75 | |
| ZH14.ER11.0816.16 | 8 | 16 | 16 | 36.3 | ER11.1216.SP / M13x0.75 | |
| ZH14.ER16.0822.32 | 8 | 22 | 32 | 52.0 | ER16.1832.SP / M22x1.5 | Z14.∙∙∙ |
| Z16.∙∙∙ | ||||||
| ZH14.ER16.0822.22 | 8 | 22 | 22 | 52.0 | ER16.1822.SP / M19x1.0 | 3.5 Nm T10F M3.5-MM |
| Z614.∙∙∙ | ||||||
| ZH14.ER16.0822.25 | 8 | 22 | 25 | 52.0 | ER16.1825.SP / M19x1.0 | Z616.∙∙∙ |
| ZH14.ER20.0822.35 | 8 | 22 | 35 | 56.5 | ER20.1935.SP / M25x1.5 | |
| ZH14.ER20.0822.28 | 8 | 22 | 28 | 56.5 | ER20.1928.SP / M24x1.0 |
