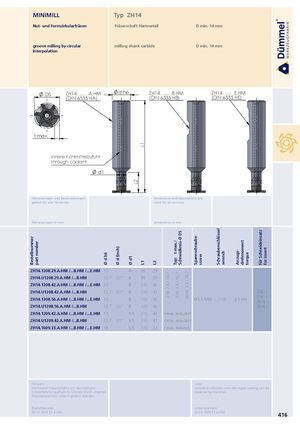

groove milling by circular milling shank carbide D min. 14 mm
interpolation
| DS | ZH14. ..... .A.HM | d h6 | ZH14. ..... .B.HM | ZH14. ..... .E.HM |
| (DIN 6535 HA) | (DIN 6535 HB) | (DIN 6535 HE) |
t max.
innere Kühlmittelzufuhr
through coolant
d1
Abmessungen und Beschreibungen dimensions and descriptions are gelten für alle Varianten valid for all versions
Abmessungen in mm dimensions in mm
| ZH14.1208.29.A.HM /...B.HM /...E.HM | 12 | 8 | 95 | 29 | |||
| ZH14.U1208.29.A.HM /...B.HM | 12.7 | 1/2" | 8 | 95 | 29 | ||
| ZH14.1208.42.A.HM /...B.HM /...E.HM | 12 | 8 | 110 | 42 | |||
| ZH14.U1208.42.A.HM /...B.HM | 12.7 | 1/2" | 8 | 110 | 42 | Z14.∙∙∙ | |
| Z16.∙∙∙ | |||||||
| ZH14.1208.56.A.HM /...B.HM /...E.HM | 12 | 8 | 120 | 56 | 3.5 Nm T10F M3.5-MM Z614.∙∙∙ | ||
| ZH14.U1208.56.A.HM /...B.HM | 12.7 | 1/2" | 8 | 120 | 56 | Z616.∙∙∙ | |
| ZH14.1209.42.A.HM /...B.HM /...E.HM | 12 | 9.5 | 110 | 42 | t max. reduziert | ||
| ZH14.U1209.42.A.HM /...B.HM | 12.7 | 1/2" | 9.5 | 110 | 42 | t max. reduziert | |
| ZH14.1609.33.A.HM /...B.HM /...E.HM | 16 | 9.5 | 110 | 33 | t max. reduced |
ZH14.1609.33.A.HM ZH14.1609.33.A.HM 416
