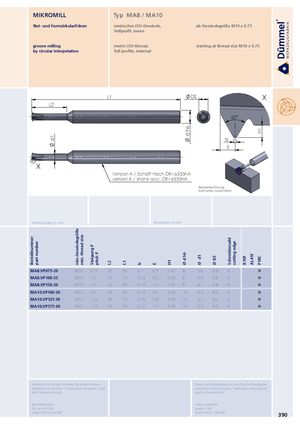

Каталог Duemmel общий 2022 - страница 395
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
groove milling metric ISO-thread, starting at thread size M10 x 0.75
by circular interpolation full profile, internal
L2
X
L1 DS X
60°
b
E
Version A / Schaft nach DIN 6535HA
version A / shank acc. DIN 6535HA
Beispielzeichnung exemplary application
Abmessungen in mm dimensions in mm
| MA8.VP075-20 | M10 | 0.75 | 20 | 69 | 0.1 | 0.5 | 0.41 | 8 | 5.6 | 6.8 | 4 | |
| MA8.VP100-25 | M10 | 1.0 | 25 | 79 | 0.12 | 0.6 | 0.54 | 8 | 5.4 | 6.8 | 4 | |
| MA8.VP150-20 | M10 | 1.5 | 20 | 69 | 0.19 | 1.0 | 0.81 | 8 | 4.7 | 6.8 | 4 | |
| MA10.VP100-20 | M12 | 1.0 | 20 | 69 | 0.12 | 0.6 | 0.54 | 10 | 6.3 | 8.0 | 4 | |
| MA10.VP125-30 | M12 | 1.25 | 30 | 79 | 0.16 | 0.8 | 0.68 | 10 | 6.1 | 8.0 | 4 | |
| MA10.VP175-30 | M12 | 1.75 | 30 | 79 | 0.22 | 1.0 | 0.95 | 10 | 5.5 | 8.0 | 4 | |
MA8.VP075-20/P18C MA8.VP075-20/P18C 390
