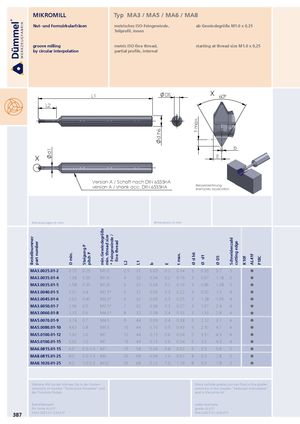

MIKROMILL Typ MA3 / MA5 / MA6 / MA8
Nut- und Formzirkularfräsen metrisches ISO-Feingewinde, ab Gewindegröße M1.0 x 0,25
groove milling metric ISO-fine thread, starting at thread size M1.0 x 0,25
by circular interpolation partial profile, internal
| L | 1 | DS | 60° X | |||||
| L2 d1 X | Version A / Schaft version A / shank a | d h6 nach DIN 6535HA cc. DIN 6535HA | t max. Beispielzeic exemplary | b E hnung application | ||||
| Abmessungen in mm Bestellnummer part number | D min. | Steigung P pitch P | min.Gewindegröße min. thread size Feingewinde / fine thread L2 | dimensions L1 b E | in mm t max. | Ø d h6 Ø d1 | Ø DS Schneidenzahl cutting edge | K10F AL41F P18C |
| MA3.0025.01-2 | 0.75 | 0.25 | M1.0 2.5 | 32 0.03 0.2 | 0.14 | 3 0.33 | 0.7 3 | |
| MA3.0035.01-4 | 1.38 | 0.35 | M1.6 4 | 32 0.04 0.2 | 0.19 | 3 0.67 | 1.18 3 | |
| MA3.0035.01-5 | 1.58 | 0.35 | M1.8 5 | 32 0.04 0.2 | 0.19 | 3 0.86 | 1.38 3 | |
| MA3.0040.01-5 | 2.07 | 0.4 | M2.5 5 | 32 0.05 0.3 | 0.22 | 3 0.92 | 1.5 4 | |
| MA3.0045.01-6 | 2.52 | 0.45 | M3.0 6 | 32 0.06 0.3 | 0.25 | 3 1.28 | 1.95 4 | |
| MA3.0050.01-7 | 2.96 | 0.5 | M3.5 7 | 32 0.06 0.3 | 0.27 | 3 1.67 | 2.4 4 | |
| MA3.0060.01-8 | 3.35 | 0.6 | M4.0 8 | 32 0.08 0.4 | 0.33 | 3 1.93 | 2.8 4 | |
| MA5.0070.01-9 | 3.74 | 0.7 | M4.5 9 | 44 0.09 0.4 | 0.38 | 5 2.12 | 3.1 4 | |
| MA5.0080.01-10 | 4.63 | 0.8 | M5.5 10 | 44 0.10 0.5 | 0.43 | 5 2.97 | 4.1 4 | |
| MA5.0100.01-12 | 5.92 | 1.0 | M7 12 | 44 0.13 0.6 | 0.54 | 5 3.51 | 4.9 4 | |
| MA5.0100.01-15 | 5.92 | 1.0 | M7 15 | 44 0.13 0.6 | 0.54 | 5 3.5 | 4.9 4 | |
| MA6.0815.01-15 | 6.0 | 0.5-1. | 5 M7 15 | 58 0.06 0.8 | 0.92 | 6 3.5 | 5.8 3 | |
| MA8.0815.01-25 | 8.0 | 0.5-1. | 5 M9 25 | 68 0.06 1.0 | 0.91 | 8 5.5 | 7.8 3 | |
| MA8.1020.01-25 | 8.0 | 1.0-2. | 0 M10 25 | 68 0.12 1.0 | 1.19 | 8 5.0 | 7.8 3 | |
387 MA3.0025.01-2/AL41F MA3.0025.01-2/AL41F
