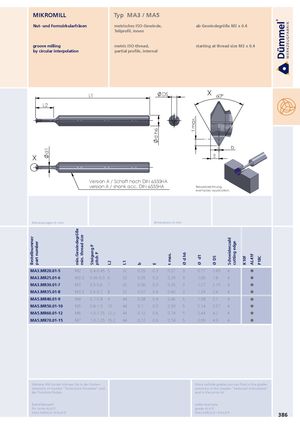

groove milling metric ISO-thread, starting at thread size M2 x 0.4
by circular interpolation partial profile, internal
DS X
L1 60°
L2
b
X E
Version A / Schaft nach DIN 6535HA
version A / shank acc. DIN 6535HA Beispielzeichnung exemplary application
Abmessungen in mm dimensions in mm
- MA3.MR20.01-5 M2 0.4-0.45 5 32 0.05 0.3 0.27 3 0.77 1.45 4
- MA3.MR25.01-6 M2.5 0.45-0.5 6 32 0.05 0.3 0.29 3 1.06 1.8 4
- MA3.MR30.01-7 M3 0.5-0.6 7 32 0.06 0.3 0.35 3 1.27 2.15 4
- MA3.MR35.01-8 M3.5 0.6-0.7 8 32 0.07 0.4 0.40 3 1.39 2.4 4
| MA5.MR40.01-9 | M4 | 0.7-0.8 | 9 | 44 | 0.08 | 0.4 | 0.46 | 5 | 1.58 | 2.7 | 4 | |
| MA5.MR50.01-10 | M5 | 0.8-1.0 | 10 | 44 | 0.1 | 0.5 | 0.59 | 5 | 2.14 | 3.57 | 4 | |
| MA5.MR60.01-12 | M6 | 1.0-1.25 12.2 | 44 | 0.12 | 0.6 | 0.74 | 5 | 2.44 | 4.2 | 4 | | |
| MA5.MR70.01-15 | M7 | 1.0-1.25 15.2 | 44 | 0.12 | 0.6 | 0.74 | 5 | 3.09 | 4.9 | 4 | |
MA3.MR20.01-5/AL41F MA3.MR20.01-5/AL41F 386
