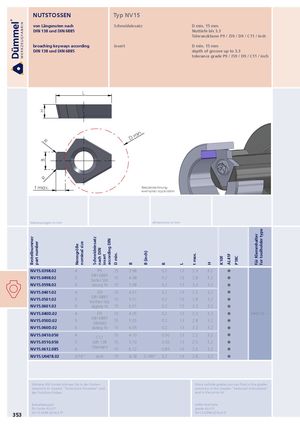

NUTSTOSSEN Typ NV15
DIN 138 und DIN 6885 Nuttiefe bis 3.3 Toleranzklasse P9 / JS9 / D9 / C11 / inch
broaching keyways according insert D min. 15 mm
DIN 138 und DIN 6885 depth of groove up to 3.3 tolerance grade P9 / JS9 / D9 / C11 / inch
L
in.
R D m
R
t max.
Beispielzeichnung exemplary application
| Abmessungen in mm Bestellnummer part number | Nenngröße nominal size | Schneideinsatz nach DIN insert | according DIN D min. | B | d B (inch) | imensions in R | mm L | t max. | H | K10F AL41F | P18C | für Klemmhalter for toolholder type |
| NV15.0398.02 | 4 | P9 | 15 | 3.98 | 0.2 | 13 | 2.3 | 3.2 | | |||
| NV15.0498.02 | 5 | DIN 688 fester Sit | z 15 | 4.98 | 0.2 | 13 | 2.8 | 3.2 | | |||
| NV15.0598.02 | 6 | strong fi | it 15 | 5.98 | 0.2 | 13 | 3.3 | 3.2 | | |||
| NV15.0401.02 | 4 | JS9 | 15 | 4.01 | 0.2 | 13 | 2.3 | 3.2 | | |||
| NV15.0501.02 | 5 | DIN 688 leichter Si | tz 15 | 5.01 | 0.2 | 13 | 2.8 | 3.2 | | |||
| NV15.0601.02 | 6 | slightly fi | it 15 | 6.01 | 0.2 | 13 | 3.3 | 3.2 | | |||
| NV15.040D.02 | 4 | D9 | 15 | 4.05 | 0.2 | 13 | 2.3 | 3.2 | | NHV.15.∙∙∙ | ||
| NV15.050D.02 | 5 | DIN 688 Gleitsitz | 15 | 5.05 | 0.2 | 13 | 2.8 | 3.2 | | |||
| NV15.060D.02 | 6 | sliding fi | it 15 | 6.05 | 0.2 | 13 | 3.3 | 3.2 | | |||
| NV15.0410.050 | 4 | C11 | 15 | 4.10 | 0.50 | 13 | 2.2 | 3.2 | | |||
| NV15.0510.050 | 5 | DIN 138 | 15 | 5.10 | 0.50 | 13 | 2.5 | 3.2 | | |||
| NV15.0612.085 | 6 | Standard | 15 | 6.12 | 0.85 | 13 | 2.6 | 3.2 | | |||
| NV15.U0478.02 | 3/16" | inch | 15 | 4.78 | 0.189 | " 0.2 | 13 | 2.8 | 3.2 | |
353 NV15.0398.02/AL41F NV15.0398.02/AL41F
