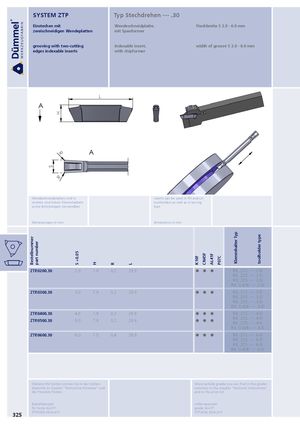

grooving with two-cutting indexable insert, width of groove S 2.0 - 6.0 mm
edges indexable inserts with chipformer
| Wendeschneidplatten s rechten und linken Kle sowie Bohrstangen ver H R R S A | ind in mmhaltern wendbar | L A | inserts can be used in RH and LH toolholders as well as in boring bars | |
| Abmessungen in mm Bestellnummer part number ZTP.0200.30 | S +0.05 2.0 | H R 7.9 0.2 | L 29.9 | dimensions in mm K10F CN45F AL41F P07C Klemmhalter Typ toolholder type R/L .212. ∙∙∙∙ .2-D R/L .220. ∙∙∙∙ .2-D R/L .225. ∙∙∙∙ .2-D |
| ZTP.0300.30 | 3.0 | 7.9 0.2 | 29.9 | R/L .0.428. ∙∙∙∙ .2-D R/L .212. ∙∙∙∙ .3-D R/L .220. ∙∙∙∙ .3-D R/L .225. ∙∙∙∙ .3-D |
| ZTP.0400.30 ZTP.0500.30 | 4.0 5.0 | 7.9 0.2 7.9 0.2 | 29.9 29.9 | R/L .0.428. ∙∙∙∙ .3-D R/L .212. ∙∙∙∙ .4-D R/L .220. ∙∙∙∙ .4-D R/L .225. ∙∙∙∙ .4-D |
| ZTP.0600.30 | 6.0 | 7.5 0.4 | 29.9 | R/L .0.428. ∙∙∙∙ .4-D R/L .212. ∙∙∙∙ .6-D R/L .220. ∙∙∙∙ .6-D R/L .225. ∙∙∙∙ .6-D R/L .0.428. ∙∙∙∙ .6-D |
325 ZTP.0200.30/AL41F ZTP.0200.30/AL41F
