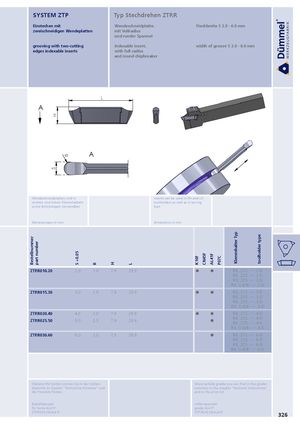

| SYSTEM ZTP Einstechen mit zweischneidigen Wendeplat grooving with two-cutting edges indexable inserts | ten | Typ Stechdrehen ZTP.R Wendeschneidplatte, mit Vollradius und runder Spannut indexable insert, with full radius and round chipbreaker Stechbreite S 2.0 width of groove | - 6.0 mm S 2.0 - 6.0 mm |
| Wendeschneidplatten sind in rechten und linken Klemmhaltern sowie Bohrstangen verwendbar H S R A | L A | inserts can be used in RH and LH toolholders as well as in boring bars | |
| Abmessungen in mm Bestellnummer part number S +0.05 ZTP.R010.20 2.0 | R 1.0 | dimensions in mm H L K10F CN45F AL41F P07C 7.9 29.9 | Klemmhalter Typ toolholder type R/L .212. ∙∙∙∙ .2-D R/L .220. ∙∙∙∙ .2-D R/L .225. ∙∙∙∙ .2-D |
| ZTP.R015.30 3.0 | 1.5 | 7.9 29.9 | R/L .0.428. ∙∙∙∙ .2-D R/L .212. ∙∙∙∙ .3-D R/L .220. ∙∙∙∙ .3-D R/L 225 ∙∙∙∙ 3-D |
| ZTP.R020.40 4.0 ZTP.R025.50 5.0 | 2.0 2.5 | 7.9 29.9 7.9 29.9 | .. . R/L .0.428. ∙∙∙∙ .3-D R/L .212. ∙∙∙∙ .4-D R/L .220. ∙∙∙∙ .4-D R/L .225. ∙∙∙∙ .4-D |
| ZTP.R030.60 6.0 | 3.0 | 7.5 29.9 | R/L .0.428. ∙∙∙∙ .4-D R/L .212. ∙∙∙∙ .6-D R/L .220. ∙∙∙∙ .6-D R/L .225. ∙∙∙∙ .6-D R/L .0.428. ∙∙∙∙ .6-D |
ZTP.R010.20/AL41F ZTP.R010.20/AL41F 326
