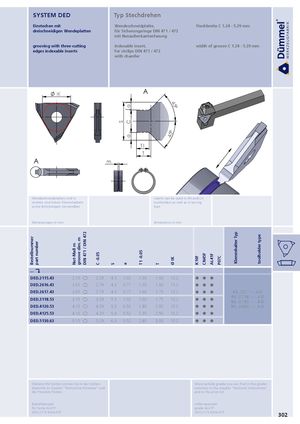

Каталог Duemmel общий 2022 - страница 307

mit Nutaußenkantenfasung

grooving with three-cutting indexable insert, width of groove C 1.24 - 5.29 mm

edges indexable inserts for circlips DIN 471 / 472 with chamfer

A

IK

45°

T1

T

A m

5°

4

Wendeschneidplatten sind in inserts can be used in RH and LH rechten und linken Klemmhaltern toolholders as well as in boring sowie Bohrstangen verwendbar bars

Abmessungen in mm dimensions in mm

• DED.2115.43 2.15 2.29 4.3 1.02 1.35 1.50 13.2

R/L .207. ∙∙∙∙ .2-D

• R/L .0.738. ∙∙∙∙ .2-D DED.2616.43 2.65 2.79 4.3 0.77 1.35 1.50 13.2
• R/L .0.780. ∙∙∙∙ .2-D DED.2617.43 2.65 2.79 4.3 0.77 1.60 1.75 13.2
• R/L .207. ∙∙∙∙ .4-D

R/L .0.660. ∙∙∙∙ .2-D R/L .0.738. ∙∙∙∙ .4-D

• DED.3118.53 3.15 3.29 5.3 1.02 1.60 1.75 13.2
• R/L .0.780. ∙∙∙∙ .4-D
• DED.4120.53 4.15 4.29 5.3 0.52 1.85 2.00 13.2
• R/L .0.660. ∙∙∙∙ .4-D
• DED.4125.53 4.15 4.29 5.3 0.52 2.35 2.50 13.2
• R/L .207. ∙∙∙∙ .3-D DED.5130.63 5.15 5.29 6.3 0.52 2.85 3.00 13.2

R/L .0.738. ∙∙∙∙ .3-D

• R/L .0.780. ∙∙∙∙ .3-D
• R/L .0.660. ∙∙∙∙ .3-D
