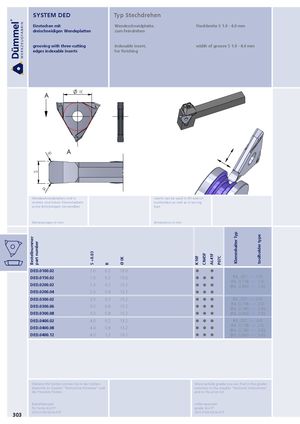

Каталог Duemmel общий 2022 - страница 308
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
dreischneidigen Wendeplatten zum Feindrehen
grooving with three-cutting indexable insert, width of groove S 1.0 - 4.0 mm
edges indexable inserts for finishing
| IK A | ||
| Wendeschneidplatten sind in rechten und linken Klemmhaltern sowie Bohrstangen verwendbar S R R A | inserts can be used in RH and LH toolholders as well as in boring bars | |
| Abmessungen in mm Bestellnummer part number S +0.03 R Ø IK | dimensions in mm K10F CN45F AL41F P07C | Klemmhalter Typ toolholder type |
| DED.0100.02 1.0 0.2 13.0 DED.0150.02 1.5 0.2 13.0 | | R/L .207. ∙∙∙∙ .1-D R/L 0738 ∙∙∙∙ 1-D |
| DED.0200.02 2.0 0.2 13.2 DED.0200.04 2.0 0.4 13.2 | | ... . (R/L .0.660. ∙∙∙∙ .1-D) |
| R/L 207 ∙∙∙∙ 2D | ||
| DED.0300.02 3.0 0.2 13.2 DED.0300.06 3.0 0.6 13.2 | | .. .- R/L .0.738. ∙∙∙∙ .2-D (R/L .0.780. ∙∙∙∙ .2-D) |
| DED.0300.08 3.0 0.8 13.2 | | (R/L .0.660. ∙∙∙∙ .2-D) |
| DED.0400.02 4.0 0.2 13.2 | | R/L .207. ∙∙∙∙ .3-D |
| DED.0400.08 4.0 0.8 13.2 | | R/L .0.738. ∙∙∙∙ .3-D (R/L .0.780. ∙∙∙∙ .3-D) |
| DED.0400.12 4.0 1.2 13.2 | | (R/L .0.660. ∙∙∙∙ .3-D) |
