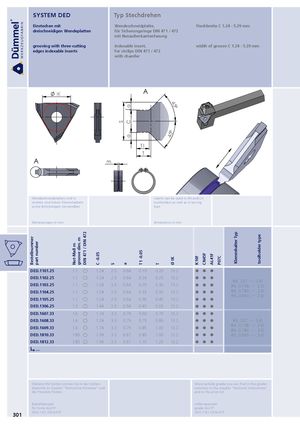

Каталог Duemmel общий 2022 - страница 306
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
mit Nutaußenkantenfasung
grooving with three-cutting indexable insert, width of groove C 1.24 - 5.29 mm
edges indexable inserts for circlips DIN 471 / 472 with chamfer
A
IK
45°
T1
T
A m
5°
4
Wendeschneidplatten sind in inserts can be used in RH and LH rechten und linken Klemmhaltern toolholders as well as in boring sowie Bohrstangen verwendbar bars
Abmessungen in mm dimensions in mm
| DED.1101.25 | 1.1 | 1.24 | 2.5 | 0.64 | 0.19 | 0.20 | 13.2 | |
| DED.1102.25 | 1.1 | 1.24 | 2.5 | 0.64 | 0.24 | 0.25 | 13.2 | |
R/L .207. ∙∙∙∙ .2-D
| DED.1103.25 | 1.1 | 1.24 | 2.5 | 0.64 | 0.29 | 0.30 | 13.2 | | R/L .0.738. ∙∙∙∙ .2-D |
| DED.1104.25 | | R/L .0.780. ∙∙∙∙ .2-D | |||||||
| 1.1 | 1.24 | 2.5 | 0.64 | 0.33 | 0.35 | 13.2 |
R/L .0.660. ∙∙∙∙ .2-D
| DED.1105.25 | 1.1 | 1.24 | 2.5 | 0.64 | 0.36 | 0.40 | 13.2 | | |
| DED.1306.25 | 1.3 | 1.44 | 2.5 | 0.54 | 0.45 | 0.55 | 13.2 | | |
| DED.1607.33 | 1.6 | 1.74 | 3.3 | 0.79 | 0.60 | 0.70 | 13.2 | | |
| DED.1608.33 | 1.6 | 1.74 | 3.3 | 0.79 | 0.75 | 0.85 | 13.2 | | R/L .207. ∙∙∙∙ .3-D |
R/L .0.738. ∙∙∙∙ .3-D
| DED.1609.33 | 1.6 | 1.74 | 3.3 | 0.79 | 0.85 | 1.00 | 13.2 | | R/L .0.780. ∙∙∙∙ .3-D |
| DED.1810.33 | 1.85 | 1.99 | 3.3 | 0.67 | 0.85 | 1.00 | 13.2 | | R/L .0.660. ∙∙∙∙ .3-D |
| DED.1812.33 | 1.85 | 1.99 | 3.3 | 0.67 | 1.10 | 1.25 | 13.2 | |
