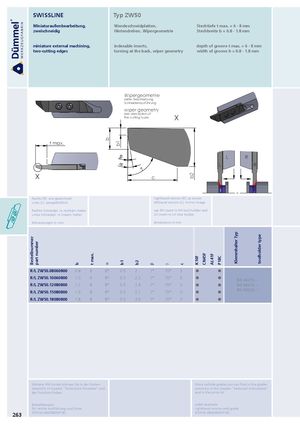

zweischneidig	Hintendrehen, Wipergeometrie	Stechbreite b = 0.8 - 1.8 mm
miniature external machining,	indexable inserts,	depth of groove t max. = 6 - 8 mm
two-cutting edges	turning at the back, wiper geometry	width of groove b = 0.8 - 1.8 mm

Rechts (R) Links (L): Rechte Sc Linke Sch Abmessu X	: wie gezeichnet spiegelbildlich hneidpl. in rechtem Halter neidpl. in linkem Halter en in mm t max.		b	righthand version (R): as shown lefthand version (L): mirror image use RH insert in RH tool holder and LH insert in LH tool holder dimensions in mm L L R R b2 b1 �� c X Wipergeometrie siehe: Beschreibung Schneidenausführung wiper geometry see: description of the cutting types
Bestellnummer part number	g b	t max.	α	b1 b2 β γ c K10F CN45F AL41F P18C Klemmhalter Typ toolholder type
R/L ZW5	0.08060800 0.8	6	8°	0.5 2 1° 70° 3  
R/L ZW5	0.10060800 1.0	6	8°	R/L HW10∙∙∙ 0.5 2.2 1° 70° 3  
R/L ZW5	0.12080800 1.2	8	8°	. R/L HW15.∙∙∙ 0.5 2.4 1° 70° 3  
R/L ZW5 R/L ZW5	0.15080800 1.5 0.18080800 1.8	8 8	8° 8°	R/L HW20.∙∙∙ 0.5 2.7 1° 70° 3   0.5 3.0 1° 70° 3  
