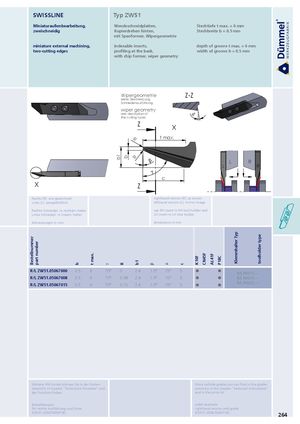

| zweischneidig | Kopierdrehen hinten, | Stechbreite b = 0.5 mm |
| mit Spanformer, Wipergeometrie | ||
| miniature external machining, | indexable inserts, | depth of groove t max. = 6 mm |
| two-cutting edges | profiling at the back, | width of groove b = 0.5 mm |
with chip former, wiper geometry
Z-Z
Wipergeometrie
siehe: Beschreibung Schneidenausführung
wiper geometry G
see: description of
the cutting typesZ
X
R t max.
R E
J
c
X Z
| Rechts (R): wie gezeichnet | righthand version (R): as shown |
| Links (L): spiegelbildlich | lefthand version (L): mirror image |
| Rechte Schneidpl. in rechtem Halter | use RH insert in RH tool holder and |
| Linke Schneidpl. in linkem Halter | LH insert in LH tool holder |
| Abmessungen in mm | dimensions in mm |
L R
L R
| R/L ZW51.05067000 | 0.5 | 6 | 70° | 0 | 2.4 | 1.5° | 15° | 5 | | | R/L HW10.∙∙∙ |
| R/L ZW51.05067008 | 0.5 | 6 | 70° | 0.08 | 2.4 | 1.5° | 15° | 5 | | | R/L HW15.∙∙∙ |
| R/L HW20.∙∙∙ | |||||||||||
| R/L ZW51.05067015 | 0.5 | 6 | 70° | 0.15 | 2.4 | 1.5° | 15° | 5 | | |
