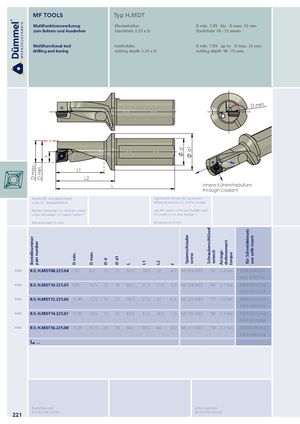

| zum Bohren und Ausdrehen | Stechtiefe 2.25 x D | Stechtiefe 18 - 72 mmm |
| Multifunctional tool | toolholder, | D min. 7.85 up to D max. 33 mm |
| drilling and boring | cutting depth 2.25 x D | cutting depth 18 - 72 mm |
D min.
L1
L2
L innere Kühlmittelzufuhr
through coolant
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich Rechte Schneidpl. in recht Linke Schneidpl. in linkem | em Halter Halter | righthan lefthand use RH in LH insert | d versio version sert in in LH t | n (R): as shown (L): mirror image RH tool holder an ool holder | d | |||||||
| Bestellnummer part number Abmessungen in mm | D min. | D max. | Ø d | Ø d1 | L | L1 | L2 dimensio | f ns in m | Spannschraube screw m | Schraubenschlüssel wrench | Anzugs- drehmoment torque | für Schneideinsatz use with insert |
| R/L H.MDT08.225.04 | 7.85 | 8.3 | 10 | 15 | 60.0 | 18.0 | 22 | 4.0 | M1.8/3-MDT | T6F | 0.4 Nm | MDR.E040204 / MDLE040204 |
| R/L H.MDT10.225.05 | 9.85 | 10.5 | 12 | 18 | 69.5 | 22.5 | 27.5 | 5.0 | M2.0/4-MDT | T6F | 0.7 Nm | . MDN.E050204 / MDNF050204 |
| R/L H.MDT12.225.06 | 11.85 | 12.5 | 16 | 22 | 78.0 | 27.0 | 33 | 6.0 | M2.2/5-MDT | T7F | 1.0 Nm | . MDN.E060204 / MDNF060204 |
| R/L H.MDT14.225.07 | 13.85 | 14.5 | 16 | 23 | 83.5 | 31.5 | 38.5 | 7.0 | M2.5/6-MDT | T8F | 1.2 Nm | . MDN.E070304 / |
| R/L H.MDT16.225.08 ↳... | 15.85 | 16.5 | 20 | 28 | 94.0 | 36.0 | 44 | 8.0 | M3.0/7-MDT | T9F | 2.2 Nm | MDN.F070304 MDN.E080304 / MDN.F080304 |
221 RH.MDT08.225.04 RH.MDT08.225.04
