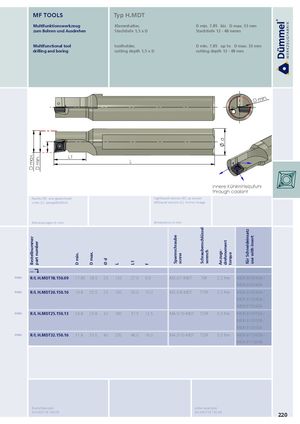

| zum Bohren und Ausdrehen | Stechtiefe 1,5 x D | Stechtiefe 12 - 48 mmm |
| Multifunctional tool | toolholder, | D min. 7.85 up to D max. 33 mm |
| drilling and boring | cutting depth 1,5 x D | cutting depth 12 - 48 mm |
D min
L1
L
Rechts (R): wie gezeichnet righthand version (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
innere Kühlmittelzufuhr
through coolant
Abmessungen in mm dimensions in mm
| neu | R/L H.MDT18.150.09 | 17.85 | 18.5 | 25 | 135 | 27.0 | 9.0 | M3.0/7-MDT | T9F | 2.2 Nm | MDN.E090404 / |
| MDN.F090404 | |||||||||||
| neu | R/L H.MDT20.150.10 | 19.8 | 20.5 | 25 | 150 | 30.0 | 10.0 | M3.5/8-MDT | T15F | 3.2 Nm | MDN.E100404 / |
| MDN.E100408 / | |||||||||||
| MDN.F100404 | |||||||||||
| neu | R/L H.MDT25.150.13 | 24.8 | 25.8 | 32 | 180 | 37.5 | 12.5 | M4.5/10-MDT | T20F | 5.0 Nm | MDN.E130504 / |
| MDN.E130508 / | |||||||||||
| MDN.F130504 | |||||||||||
| neu | R/L H.MDT32.150.16 | 31.8 | 33.0 | 40 | 200 | 48.0 | 16.0 | M4.5/10-MDT | T20F | 5.0 Nm | MDN.E170608 / |
MDN.F170608
RH.MDT18.150.09 RH.MDT18.150.09 220
