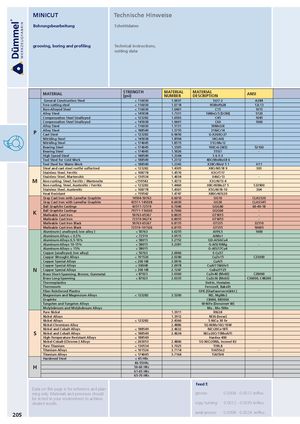

grooving, boring and profiling Technical instructions,
cutting data
| MATERIAL | STRENGTH (psi) | MATERIAL NUMBER | MATERIAL DESCRIPTION | ANSI | |
| General Construction Steel | < 116030 | 1.0037 | St37-2 | A284 | |
| Free-cutting steel Non-Alloyed Steel | < 116030 < 116030 | 1.0718 10401 | 9SMnPb28 C15 | 12L13 1015 | |
| All Sl | 145038 | . 17331 | 16MC5EC80 | 5120 | |
| oy tee Compensation Steel Unalloyed | < 123282 | . 1.0503 | nr() C45 | 1045 | |
| Compensation Steel Unalloyed Allo Steel | < 145038 < 116030 | 1.0601 15131 | C60 50MnSi4 | 1060 | |
| P | y Alloy Steel | < 188549 | . 1.5755 | 31NiCr14 | |
| Cast Steel Nitriding Steel | < 123282 < 145038 | 0.9650 18504 | G-X260Cr27 34CrAl6 | ||
| Nitriding Steel | < 174045 | . 1.8515 | 31CrMo12 | ||
| Bearing Steel Bearing Steel | < 174045 < 174045 | 1.3505 1.5026 | 100Cr6(W3) 55Si7 | 52100 - | |
| High Speed Steel | < 188549 | 1.3344 | S 6-5-3 | ||
| Tool Steel for Cold Work | < 188549 | 1.2312 | 40CrMnMoS8 6 | ||
| Tool Steel for Warm Work | < 188549 | 1.2343 | X38CrMoV 5 1 | H11 | |
| Steel and cast steel rostfei sulfurized | < 123282 | 1.4305 | X8CrNiS18 9 | 303 | |
| Stainless Steel, Ferritic | < 108778 | 1.4510 | X3CrTi17 | ||
| Stainless Steel, Martensitic | < 130534 | 1.4034 | X46Cr13 | - | |
| M | Non-rusting. Steel Ferritic / Martensite | 1.4313 | X3CrNi13-4 | ||
| , Non-rusting. Steel, Austenitic / Ferritic | < 123282 | 1.4460 | X8CrNiMo27 5 | S32900 | |
| Stainless Steel, Austenitic Heat Resistant | < 108778 < 159542 | 1.4301 1.4747 | X5CrNi18-10 X80CrNiSi20 | 304 | |
| Gray Cast Iron with Lamellar Graphite | 14504-50763 | 0.6010 | GG10 | CLASS20 | |
| Gray Cast Iron with Lamellar Graphite Ball Graphite Castings | 43511-145038 43511-72519 | 0.6030 0.7040 | GG30 GGG40 | CLASS45 60-40-18 | |
| Ball Graphite Castings | 79771-116030 | 0.7060 | GGG60 | - | |
| K | Malleable Cast Iron | 50763-65367 | 0.8035 | GTW35 | - |
| Malleable Cast Iron | 72519-94274 | 0.8055 | GTW55 | - | |
| Malleable Cast Iron Black | 50763-65267 | 0.8135 | GTS35 | 32510 | |
| Malleable Cast Iron Black | 72519-101526 | 0.8155 | GTS55 | 50005 | |
| Aluminum( unalloyed, low alloy ) Aluminum Alloys < 0,5% | < 50763 < 72519 | 3.0255 3.0515 | Al99,5 AlMn1 | 1000 | |
| Aluminum Alloys 0,5-10% | < 58015 | 3.2152 | GD-AlSi6Cu4 | ||
| Aluminum Alloys 10-15% Aluminum Alloys > 15% | < 58015 < 58015 | 3.2381 | G-AlSi10Mg G-AlSi17Cu4 | - | |
| Copper(unalloyed, low alloy) | < 50763 | 2.0060 | E-Cu57 | ||
| Copper Wrought Alloys Copper Special Alloys | < 101526 < 200 HB | 2.0240 2.0916 | CuZn15 CuAl5 | C23000 | |
| Copper Special Alloys | < 300HB | 2.0978 | CuAl11Ni6Fe5 | ||
| N | Copper Special Alloys | > 300 HB | 2.1247 | CuBe2F125 | |
| Brass Short-Spanning, Bronze, Gunmetal | < 87023 | 2.0360 | CuZn40(Ms60) | C28000 | |
| Brass Long-Spanning | < 87023 | 2.0335 | CuZn36(Ms63) | C36000, C48200 | |
| Thermoplastics Th | Delrin, Hostalen Fll Bkli | ||||
| ermosets Fiber Reinforced Plastics | erroze, aet GFK(Glasfaserverstärkt) | ||||
| Magnesium and Magnesium Alloys Graphite | < 123282 | 3.5200 | M2, MgMn2 C8000 R8500X | ||
| Tungsten and Tungsten Alloys | , W-NiFe(Densimet W) | ||||
| Molybdenum and Molybdenum Alloys Pure Nickel | 13911 | Mo, Mo-50Re RNi24 | |||
| Nickel Alloys | . 1.3912 | Ni36(Invar) | |||
| Nickel Alloys | < 123282 | 2.4360 | S-NiCu 30 Fe | ||
| Nickel-Chromium Alloy Nikl d Cblt All | 188549 | 2.4886 24632 | SG-NiMo16Cr16W NiC20C18Ti | ||
| ce an oa oys | . | ro | |||
| S | Nickel and Cobalt Alloys | < 188549 | 2.4634 | NiCo20Cr15MoAlTi | |
| High-Temperature Resistant Alloys | < 188549 | Hardox 400 | |||
| Nickel-Cobalt-(Chrome-) Alloys Pure Titanium | < 203053 < 130534 | 2.4806 37025 | SG-NiCr20Nb, Inconel 82 Ti998 | ||
| Titanium Alloys | < 101526 | . 3.7114 | , TiAl5Sn2 | - | |
| Titanium Alloys Hardened Steel | < 174045 < 45 HRc | 3.7164 | TiAl5V4 | ||
| 46-55HRc | |||||
| H | 56-60 HRc 61-65 HRc | ||||
| 65-70 HRc | |||||
| feed f: | |||||
| Data | on this page is for reference and plan- | ||||
| ning | only. Materials and processes should | groove: 0.0004 - 0 | .0012 in/Rev. | ||
| be t desi | ested in your environment to achieve red results. | copy turning: 0.0012 - 0 axial groove: 0.0008 - 0 | .0039 in/Rev. .0024 in/Rev. |
