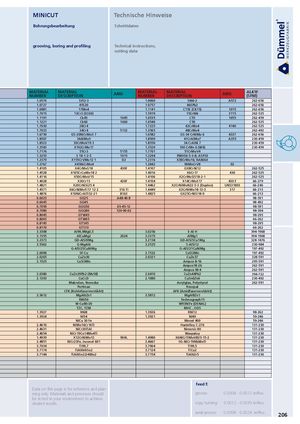

grooving, boring and profiling Technical instructions,
cutting data
| MATERIAL | MATERIAL | ANSI | MATERIAL | MATERIAL | ANSI | AL41F |
| NUMBER | DESCRIPTION | NUMBER | DESCRIPTION | (SFM) | ||
| 1.0570 | St52-3 | 1.0060 | St60-2 | A572 | 262-656 | |
| 1.0727 | 45S20 | 1.0757 | 46SPb2 | 262-656 | ||
| 1.0481 | 17Mn4 | 1.1141 | C15E(CK15) | 1015 | 262-656 | |
| 17015 | 13C3EC60 | 15919 | 15CNi6 | 3115 | 262525 | |
| . 1.1191 | r() Ck45 | 1045 | . 1.0535 | r C55 | 1055 | - 262-459 |
| 1.1221 17030 | Ck60 28Cr4 | 1060 | 1.0540 17225 | C50 42CrMo4 | 4140 | 262-525 262-525 |
| . 1.7033 | 34Cr4 | 5132 | . 1.3565 | 48CrMo4 | 262-492 | |
| 1.6750 18507 | GS-20NiCrMo3 7 34AlMo5 | 1.6582 18509 | GS-34 CrNiMo 6 41CrAlMo7 | 4337 A355 | 262-656 230-459 | |
| . 1.8523 | 39CrMoV19 3 | . 1.8550 | 34 CrAlNi 7 | 230-459 | ||
| 1.3543 1.7176 | X192CrMo17 55Cr3 | 5155 | 1.3520 1.7701 | 100 CrMn 6(W4) 51CrMoV4 | 230-459 | |
| 1.3255 | S 18-1-2-5 | 1015 | 1.3294 | PMHS6-5-3-8; ASP30 | ||
| 1.2379 1.2767 | X155CrVMo12 1 X45NiCrMo4 | D2 | 1.2316 1.2842 | X38CrMo16; RAMAX 90MnCrV8 | 02 | |
| 1.4105 | X4CrMoS18 | 430F | 1.4107 | GX8CrNi12 | 262-525 | |
| 1.4528 | X105CrCoMo18 2 | 1.4016 | X6Cr17 | 430 | 262-525 | |
| 1.4116 1.4028 | X50CrMoV15 X30Cr13 | 420F | 1.4106 1.4104 | X2CrMoSiS18-2-1 X14CrMoS17 | 430 F | 262-525 66-279 |
| 1.4821 | X20CrNiSi25 4 | 1.4462 | X2CrNiMoN22-5-3(Duplex) | UNS31803 | 66-246 | |
| 1.4571 1.4876 | X6CrNiMoTi17 12 2 X10NiCrAlTi32-21 | 316 Ti B163 | 1.4449 1.4825 | X3CrNiMo18-12-3 GX25CrNiSi18-9 | 317 | 66-213 66-213 |
| 0.6025 | GG25 | A48-40 B | 98-591 | |||
| 0.6045 0.7050 | GG45 GGG50 | 65-45-12 | 98-492 98-591 | |||
| 0.7080 | GGG80 | 120-90-02 | 98-394 | |||
| 0.8045 | GTW45 | 98-295 | ||||
| 0.8065 | GTW65 | 66-262 | ||||
| 0.8145 | GTS45 | 98-295 | ||||
| 0.8170 | GTS70 | 66-262 | ||||
| 3.3308 3.1355 | Al99,9Mg0,5 AlCuMg2 | 2024 | 3.0256 3.3315 | E-Al H AlMg1 | 394-1968 394-1968 | |
| 3.2373 | GD-AlSi9Mg | 3.2134 | GD-AlSi5Cu1Mg | 328-1476 | ||
| 3.5562 | G-MgAl6 G-AlSi25CuNiMg | 3.2525 | S-AlSi12 G-AlSi21CuNiMg | 230-984 197-492 | ||
| 2.0090 | SF-Cu | 2.1522 | CuSl2Mn | 197-492 | ||
| 2.0265 | CuZn30 | 2.0321 | CuZn37 | 328-591 | ||
| 2.1525 | CuSi3Mn | Ampco 8-16 Ampco18-26 | 295-591 262-591 | |||
| Ampco M-4 | 262-591 | |||||
| 2.0380 2.1293 | CuZn39Pb2(Ms58) CuCrZr | 2.0410 2.1080 | CuZn44Pb2 CuSn6Zn6 | 394-722 230-492 | ||
| Makrolon, Novodur Pi | Acrylglas, Polystyrol Rl | 262-591 | ||||
| ertnax CFK(Kohlefaserverstärkt) | esopa AFK(Amidfaserverstärkt) | |||||
| 3.5612 | MgAl6Zn1 R8650 | 3.5812 | MgAl8Zn1 Technograph15 | |||
| W-Cu80/20 TZC, TZM | W93NiFe(DENAL) MHC, ODS | |||||
| 1.3927 | RNi8 | 1.3926 | RNi12 | 98-262 | ||
| 1.3924 | Ni54 NiCu 30 Fe | 1.3921 | Ni49 Monel 400 | 59-246 59-246 | ||
| 2.4610 | NiMo16Cr16Ti | Hastelloy C-276 | 131-230 | |||
| 2.4631 2.4654 | NiCr20TiAl NiCr19Co14Mo4Ti | Nimonic 80 Waspaloy | 131-230 131-230 | |||
| 1.4939 | X12CrNiMo12 | 904L | 1.4980 | X6NiCrTiMoVB25-15-2 | 131-230 | |
| 2.4851 3.7034 | NiCr23Fe, Inconel 601 Ti99,7 | 2.4667 3.7064 | SG-NiCr19NbMoTi Ti99,5 | 131-230 131-230 | ||
| 3.7174 | TiAl6V6Sn2 | 3.7124 | TiCu2 | 131-230 | ||
| 3.7144 | TiAl6Sn2Zr4Mo2 | 3.7154 | TiAl6Zr5 | 131-230 | ||
| feed f: | ||||||
| Data on this p ning only Ma | age is for reference and plan- terials and processes should | groove: | 0.0004 - 0. | 0012 in/Rev. | ||
| . be tested in y desired result | our environment to achieve s. | copy turning: axial groove: | 0.0012 - 0. 0.0008 - 0. | 0039 in/Rev. 0024 in/Rev. |
Hardened Steel
