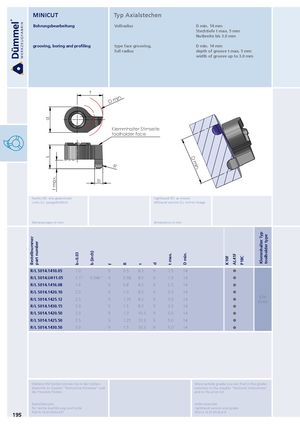

Каталог Duemmel общий 2022 - страница 200
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
| Bohrungsbearbeitung | Vollradius | D min. 14 mm |
| Stechtiefe t max. 5 mm | ||
| Nutbreite bis 3.0 mm | ||
| grooving, boring and profiling | type face grooving, | D min. 14 mm |
full radius depth of groove t max. 5 mm width of groove up to 3.0 mm
f
D min.
Klemmhalter Stirnseite
toolholder face
R
b
D
m
in.
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| Bestellnummer part number | b+0.03 | b (inch) | f | R | s | d | t max. | D min. | K10F AL41F | P18C | Klemmhalter Typ toolholder type |
| R/L S014.1410.05 | 1.0 | 9 | 0.5 | 8.3 | 9 | 1.5 | 14 | | |||
| R/L S014.U411.05 | 1.17 | 0.046" | 9 | 0.58 | 8.3 | 9 | 1.5 | 14 | | ||
| R/L S014.1416.08 | 1.6 | 9 | 0.8 | 8.3 | 9 | 2.5 | 14 | | |||
| R/L S014.1420.10 | 2.0 | 9 | 1.0 | 8.3 | 9 | 3.0 | 14 | | |||
| R/L S014.1425.12 | 2.5 | 9 | 1.25 | 8.3 | 9 | 3.0 | 14 | | 614 614A | ||
| R/L S014.1430.15 | 3.0 | 9 | 1.5 | 8.3 | 9 | 3.0 | 14 | | |||
| R/L S014.1420.50 | 2.0 | 9 | 1.0 | 10.3 | 9 | 5.0 | 14 | | |||
| R/L S014.1425.50 | 2.5 | 9 | 1.25 | 10.3 | 9 | 5.0 | 14 | | |||
| R/L S014.1430.50 | 3.0 | 9 | 1.5 | 10.3 | 9 | 5.0 | 14 | |
