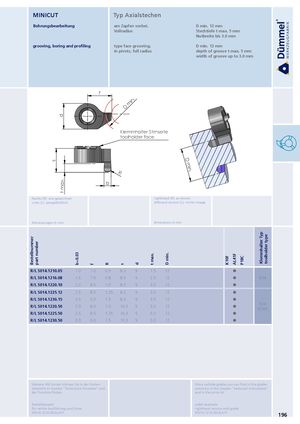

Bohrungsbearbeitung	am Zapfen vorbei,	D min. 12 mm
	Vollradius	Stechtiefe t max. 5 mm
		Nutbreite bis 3.0 mm
grooving, boring and profiling	type face grooving,	D min. 12 mm

in pivots, full radius depth of groove t max. 5 mm width of groove up to 3.0 mm

Rechts (R): wie gezeichne Links (L): spiegelbildlich t max. s d	t f	righ left b R D min. Klemmhalter Stirns toolholder face	thand (R) hand versi eite	: as shown on (L): mirror image D min.
Bestellnummer part number Abmessungen in mm	b+0.03 f	R s d t max. dim	D min. ensions in	K10F AL41F P18C mm	Klemmhalter Typ toolholder type
R/L S014.1210.05 R/L S014.1216.08 R/L S014.1220.10	1.0 7.0 1.6 7.6 2.0 8.0	0.5 8.3 9 1.5 0.8 8.3 9 2.5 1.0 8.3 9 3.0	12 12 12	  	614
R/L S014.1225.12 R/L S014.1230.15 R/L S014.1220.50	2.5 8.5 3.0 9.0 2.0 8.0	1.25 8.3 9 3.0 1.5 8.3 9 3.0 1.0 10.3 9 5.0	12 12 12	  	614 614A
R/L S014.1225.50 R/L S014.1230.50	2.5 8.5 3.0 9.0	1.25 10.3 9 5.0 1.5 10.3 9 5.0	12 12	 
