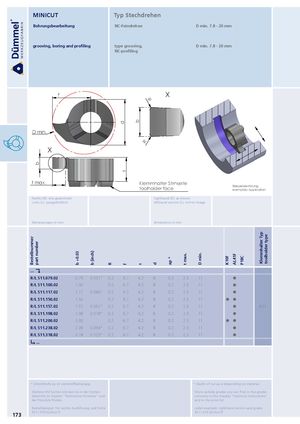

Каталог Duemmel общий 2022 - страница 178
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
grooving, boring and profiling type grooving, D min. 7.8 - 20 mm
NC-profiling
f R X
D min.
R
X
t max.
Klemmhalter Stirnseite
toolholder face Beispielzeichnung exemplary application Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| Bestellnummer part number | b +0.03 | b (inch) | R | f | s | d | ap | t max. | D min. | K10F AL41F | P18C | Klemmhalter Typ toolholder type |
| ... ↴ | ||||||||||||
| R/L S11.079.02 | 0.79 | 0.031” | 0.2 | 6.7 | 4.2 | 8 | 0.2 | 2.3 | 11 | | ||
| R/L S11.100.02 | 1.00 | 0.2 | 6.7 | 4.2 | 8 | 0.2 | 2.3 | 11 | | |||
| R/L S11.117.02 | 1.17 | 0.046” | 0.2 | 6.7 | 4.2 | 8 | 0.2 | 2.3 | 11 | | ||
| R/L S11.150.02 | 1.50 | 0.2 | 6.7 | 4.2 | 8 | 0.2 | 2.3 | 11 | | |||
| R/L S11.157.02 | 1.57 | 0.062” | 0.2 | 6.7 | 4.2 | 8 | 0.2 | 2.3 | 11 | | 611 | |
| R/L S11.198.02 | 1.98 | 0.078” | 0.2 | 6.7 | 4.2 | 8 | 0.2 | 2.3 | 11 | | ||
| R/L S11.200.02 | 2.00 | 0.2 | 6.7 | 4.2 | 8 | 0.2 | 2.3 | 11 | | |||
| R/L S11.238.02 | 2.38 | 0.094” | 0.2 | 6.7 | 4.2 | 8 | 0.2 | 2.3 | 11 | | ||
| R/L S11.318.02 ↳... | 3.18 | 0.125” | 0.2 | 6.7 | 4.2 | 8 | 0.2 | 2.3 | 11 | |
