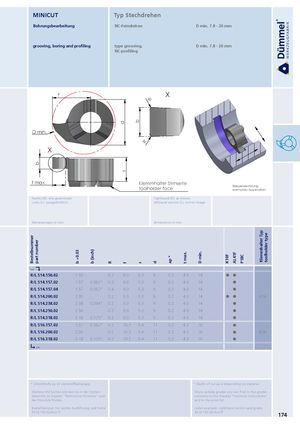

Каталог Duemmel общий 2022

grooving, boring and profiling type grooving, D min. 7.8 - 20 mm

NC-profiling

Rechts (R): wie gezeichnet Links (L): spiegelbildlich f D min. b t max. X		d s	b R Klem tool	righth leftha R mhalt holder	and (R): nd versio X er Stirn face	as shown n (L): mirr seite	or image Beispielzeic exemplary	hnung application
Bestellnummer part number b +0.03 ... ↴ Abmessungen in mm	b (inch) R	f	s	d dimen	ap sions in	t max. mm	D min. K10F AL41F P18C	Klemmhalter Typ toolholder type
R/L S14.150.02 1.50 R/L S14.157.02 1.57 R/L S14.157.04 1.57 R/L S14.200.02 2.00 R/L S14.238.02 2.38 R/L S14.250.02 2.50 R/L S14.318.02 3.18	0.2 0.062” 0.2 0.062" 0.4 0.2 0.094" 0.2 0.2 0.125" 0.2	9.0 9.0 9.0 9.0 9.0 9.0 9.0	5.3 5.3 5.3 5.3 5.3 5.3 5.3	9 9 9 9 9 9 9	0.2 0.2 0.2 0.2 0.2 0.2 0.2	4.0 4.0 4.0 4.0 4.0 4.0 4.0	14   14  14  14   14  14  14 	614
R/L S16.157.02 1.57 R/L S16.200.02 2.00 R/L S16.318.02 3.18 ↳...	0.062” 0.2 0.2 0.125" 0.2	10.2 10.2 10.2	5.4 5.4 5.4	11 11 11	0.2 0.2 0.2	4.3 4.3 4.3	16  16  16 	616
