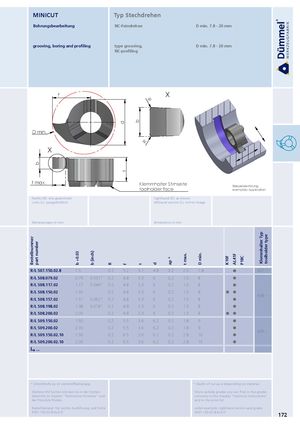

grooving, boring and profiling type grooving, D min. 7.8 - 20 mm
NC-profiling
f R X
D min.
R
X
t max.
Klemmhalter Stirnseite
Beispielzeichnung toolholder face exemplary application Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| Bestellnummer part number | b +0.03 | b (inch) | R | f | s | d | ap | t max. | D min. | K10F AL41F | P18C | Klemmhalter Typ toolholder type |
| R/L S07.150.02.8 | 1.5 | 0.2 | 5.2 | 3.7 | 4.8 | 0.2 | 2.0 | 7.8 | | 607.∙∙∙ | ||
| R/L S08.079.02 | 0.79 | 0.031" | 0.2 | 4.8 | 3.3 | 6 | 0.2 | 1.0 | 8 | | ||
| R/L S08.117.02 | 1.17 | 0.046“ | 0.2 | 4.8 | 3.3 | 6 | 0.2 | 1.0 | 8 | | ||
| R/L S08.150.02 | 1.50 | 0.2 | 4.8 | 3.3 | 6 | 0.2 | 1.0 | 8 | | 608∙∙∙ | ||
| R/L S08.157.02 | 1.57 | 0.062" | 0.2 | 4.8 | 3.3 | 6 | 0.2 | 1.0 | 8 | | . | |
| R/L S08.198.02 | 1.98 | 0.078" | 0.2 | 4.8 | 3.3 | 6 | 0.2 | 1.0 | 8 | | ||
| R/L S08.200.02 | 2.00 | 0.2 | 4.8 | 3.3 | 6 | 0.2 | 1.0 | 8 | | |||
| R/L S09.150.02 | 1.50 | 0.2 | 5.5 | 3.6 | 6.2 | 0.2 | 1.8 | 9 | | |||
| R/L S09.200.02 | 2.00 | 0.2 | 5.5 | 3.6 | 6.2 | 0.2 | 1.8 | 9 | | 609∙∙∙ | ||
| R/L S09.150.02.10 | 1.50 | 0.2 | 6.5 | 3.6 | 6.2 | 0.2 | 2.8 | 10 | | . | ||
| R/L S09.200.02.10 ↳... | 2.00 | 0.2 | 6.5 | 3.6 | 6.2 | 0.2 | 2.8 | 10 | |
RS07.150.02.8/AL41F RS07.150.02.8/AL41F 172
