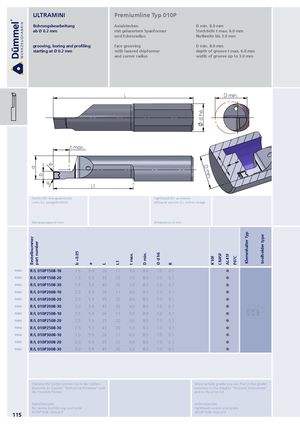

ULTRAMINI Premiumline Typ 010P
| ab Ø 0.2 mm | mit gelasertem Spanformer | Stechtiefe t max. 6.0 mm |
| und Eckenradius | Nutbreite bis 3.0 mm | |
| grooving, boring and profiling | face grooving | D min. 8.0 mm |
| starting at Ø 0.2 mm | with lasered chipformer | depth of groove t max. 6.0 mm |
and corner radius width of groove up to 3.0 mm
| Rechts (R): wie gezeic Links (L): spiegelbildlic R R b a | hnet h t max. | L1 | L | rightha lefthan | nd (R): as shown d version (L): mirro | r image D m d h6 | in. D min. | |||
| Abmessungen in mm Bestellnummer part number | b +0.05 | a | L | L1 | t max. | D min. | dimens Ø d h6 | ions in mm R | K10F CN45F AL41F P07C Klemmhalter Typ toolholder type | |
| R/L 010P1508-10 R/L 010P1508-20 | 1.5 1.5 | 5.9 5.9 | 26 35 | 11 20 | 3.0 3.0 | 8.0 8.0 | 7.0 7.0 | 0.1 0.1 | | |
| R/L 010P1508-30 | 1.5 | 5.9 | 45 | 30 | 3.0 | 8.0 | 7.0 | 0.1 | | |
| R/L 010P2008-10 | 2.0 | 5.9 | 26 | 11 | 4.0 | 8.0 | 7.0 | 0.1 | | |
| R/L 010P2008-20 | 2.0 | 5.9 | 35 | 20 | 4.0 | 8.0 | 7.0 | 0.1 | | |
| R/L 010P2008-30 | 2.0 | 5.9 | 45 | 30 | 4.0 | 8.0 | 7.0 | 0.1 | .∙∙∙ .∙∙∙ .∙∙∙ .7 | |
| R/L 010P2508-10 | 2.5 | 5.9 | 26 | 11 | 5.0 | 8.0 | 7.0 | 0.1 | 670 676 687 ∙∙∙ | |
| R/L 010P2508-20 | 2.5 | 5.9 | 35 | 20 | 5.0 | 8.0 | 7.0 | 0.1 | | |
| R/L 010P2508-30 | 2.5 | 5.9 | 45 | 30 | 5.0 | 8.0 | 7.0 | 0.1 | | |
| R/L 010P3008-10 | 3.0 | 5.9 | 26 | 11 | 6.0 | 8.0 | 7.0 | 0.1 | | |
| R/L 010P3008-20 | 3.0 | 5.9 | 35 | 20 | 6.0 | 8.0 | 7.0 | 0.1 | | |
| R/L 010P3008-30 | 3.0 | 5.9 | 45 | 30 | 6.0 | 8.0 | 7.0 | 0.1 | |
R010P1508-10/AL41F R010P1508-10/AL41F
