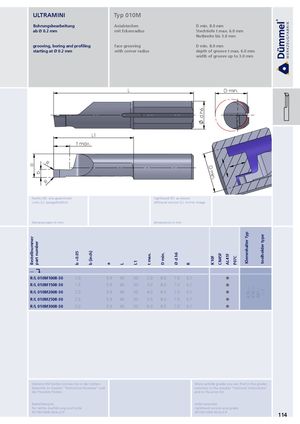

Каталог Duemmel общий 2022 - страница 119
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
Nutbreite bis 3.0 mm
| grooving, boring and profiling | face grooving | D min. 8.0 mm |
| starting at Ø 0.2 mm | with corner radius | depth of groove t max. 6.0 mm |
width of groove up to 3.0 mm
L D min.
L1
t max.
R
R
D
m
in
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 010M1008-30 | 1.0 | 5.9 | 45 | 30 | 2.0 | 8.0 | 7.0 | 0.1 | |
| R/L 010M1508-30 | 1.5 | 5.9 | 45 | 30 | 3.0 | 8.0 | 7.0 | 0.1 | |
| R/L 010M2008-30 | 2.0 | 5.9 | 45 | 30 | 4.0 | 8.0 | 7.0 | 0.1 | |
| 670.∙∙∙ 676.∙∙∙ 687.∙∙∙ ∙∙∙.7 | |||||||||
| R/L 010M2508-30 | 2.5 | 5.9 | 45 | 30 | 5.0 | 8.0 | 7.0 | 0.1 | |
| R/L 010M3008-30 | 3.0 | 5.9 | 45 | 30 | 6.0 | 8.0 | 7.0 | 0.1 | |
