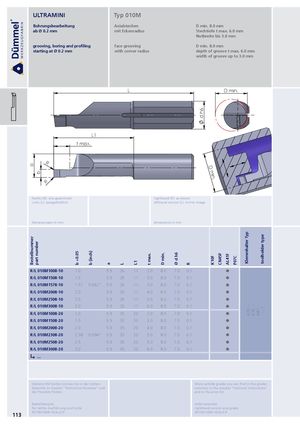

Nutbreite bis 3.0 mm
| grooving, boring and profiling | face grooving | D min. 8.0 mm |
| starting at Ø 0.2 mm | with corner radius | depth of groove t max. 6.0 mm |
width of groove up to 3.0 mm
| Rechts (R): wie gezeichn Links (L): spiegelbildlich R R b a | et t m | L1 ax. | L | ri le | ghthand fthand v | (R): as shown ersion (L): mirror | image d h6 | D min. D min. | |||
| Abmessungen in mm Bestellnummer part number | b +0.05 | b (inch) | a | L | L1 | d t max. | imension D min. | s in mm Ø d h6 R | K10F CN45F AL41F P07C | Klemmhalter Typ toolholder type | |
| R/L 010M1008-10 | 1.0 | 5.9 | 26 | 11 | 2.0 | 8.0 | 7.0 0.1 | | |||
| R/L 010M1508-10 | 1.5 | 5.9 | 26 | 11 | 3.0 | 8.0 | 7.0 0.1 | | |||
| R/L 010M1578-10 | 1.57 | 0.062" | 5.9 | 26 | 11 | 3.0 | 8.0 | 7.0 0.1 | | ||
| R/L 010M2008-10 | 2.0 | 5.9 | 26 | 11 | 4.0 | 8.0 | 7.0 0.1 | | |||
| R/L 010M2508-10 R/L 010M3008-10 | 2.5 3.0 | 5.9 5.9 | 26 26 | 11 11 | 5.0 6.0 | 8.0 8.0 | 7.0 0.1 7.0 0.1 | | 0.∙∙∙ 6.∙∙∙ 7.∙∙∙ ∙.7 | ||
| R/L 010M1008-20 | 1.0 | 5.9 | 35 | 20 | 2.0 | 8.0 | 7.0 0.1 | | 67 67 68 ∙∙ | ||
| R/L 010M1508-20 | 1.5 | 5.9 | 35 | 20 | 3.0 | 8.0 | 7.0 0.1 | | |||
| R/L 010M2008-20 | 2.0 | 5.9 | 35 | 20 | 4.0 | 8.0 | 7.0 0.1 | | |||
| R/L 010M2308-20 | 2.38 | 0.094" | 5.9 | 35 | 20 | 5.0 | 8.0 | 7.0 0.1 | | ||
| R/L 010M2508-20 | 2.5 | 5.9 | 35 | 20 | 5.0 | 8.0 | 7.0 0.1 | | |||
| R/L 010M3008-20 ↳ ... | 3.0 | 5.9 | 35 | 20 | 6.0 | 8.0 | 7.0 0.1 | |
